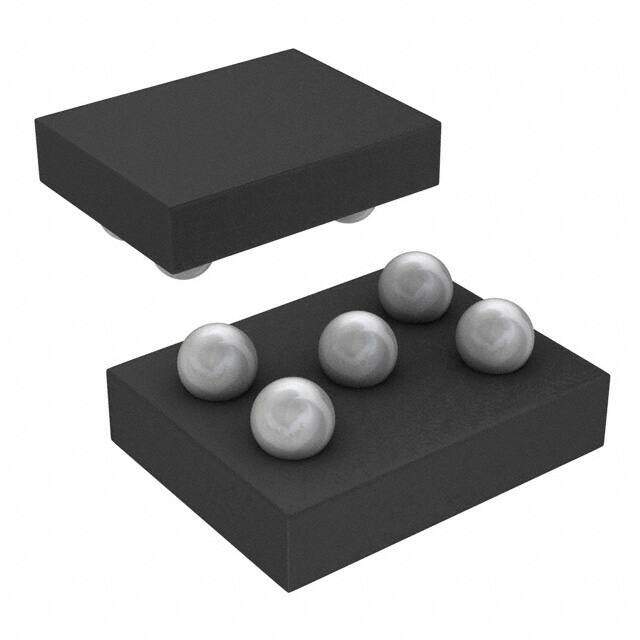

ESDA14V2-4BF2
RoHS
RoHS compliant
RoHS compliantPackage 5-WFBGA, FCBGA
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 12VWM FLIPCHIP
PDF
/
Buying Options
Total Price: USD $10.92
Unit Price: USD $10.92405
≥1 USD $10.92405
≥10 USD $8.96325
≥100 USD $8.683
≥500 USD $8.4037
≥1000 USD $8.12345
Inventory: 4404
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 8 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 5-WFBGA, FCBGA
Number of Pins 5
Diode Element Material SILICON
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Series ESDA, TRANSIL?
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination SMD/SMT
ECCN Code EAR99
Type Zener
Applications General Purpose
Capacitance 15pF
Subcategory Transient Suppressors
Power Rating 40W
Voltage - Rated DC 14.2V
Technology AVALANCHE
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Depth 1.07mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number ESDA14
Pin Count 5
Number of Elements 4
Working Voltage 12V
Configuration COMPLEX
Leakage Current 1μA
Power Line Protection No
Reverse Standoff Voltage 12V
Peak Pulse Power 50W
Direction Bidirectional
Breakdown Voltage 18V
Bidirectional Channels 2
Number of Bidirectional Channels 4
Dimensions
Length 1.47mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
