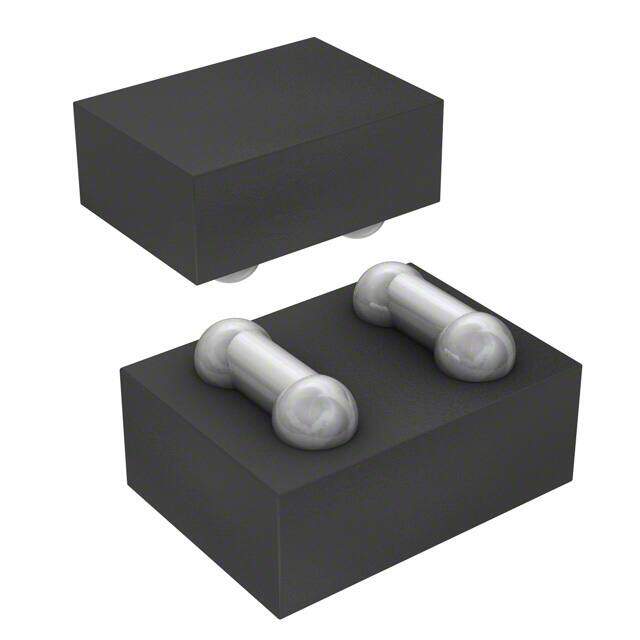

ESDA14V2-1BF3
RoHS
RoHS compliant
RoHS compliantPackage 2-XFBGA, FCBGA
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 12VWM 2FLIPCHIP
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.26576
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-XFBGA, FCBGA
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -40°C~125°C TJ
Packaging Cut Tape (CT)
Series ESDA, TRANSIL?
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
Capacitance 10pF
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Base Part Number ESDA14
Pin Count 2
Number of Elements 1
Number of Channels 1
Leakage Current 500nA
Element Configuration Single
Power Line Protection No
Power - Peak Pulse 50W
Reverse Standoff Voltage 12V
Peak Pulse Power 50W
Direction Bidirectional
Breakdown Voltage 14.2V
Max Breakdown Voltage 18V
Dimensions
Length 500μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
