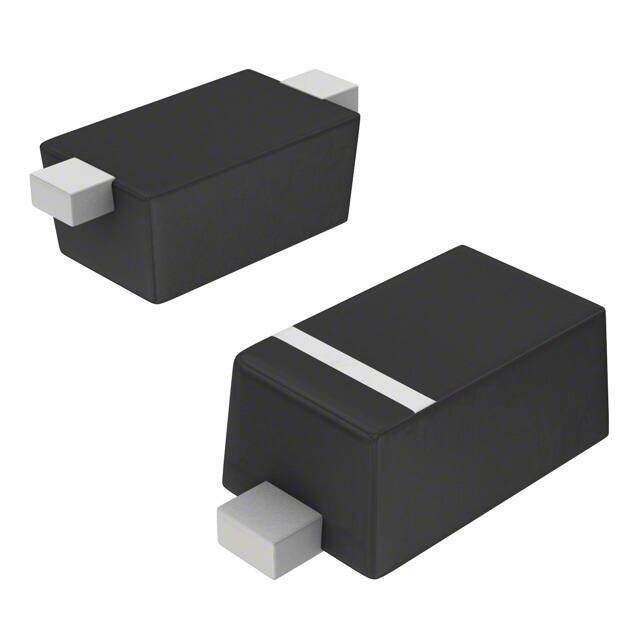

ESDA12-1K
RoHS
RoHS compliant
RoHS compliantPackage SC-79, SOD-523
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 10VWM 28VC SOD523
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.2948
≥100 USD $0.148896
≥500 USD $0.121475
≥1000 USD $0.09013
Inventory: 115076
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -40°C~150°C TJ
Packaging Tape & Reel (TR)
Series ESDA, TRANSIL?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Capacitance 150pF
Max Power Dissipation 450W
Technology AVALANCHE
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Depth 800μm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number ESDA12
Pin Count 2
Number of Elements 1
Working Voltage 10V
Polarity Unidirectional
Leakage Current 500nA
Element Configuration Single
Power Line Protection No
Current - Peak Pulse (10/1000μs) 16A 8/20μs
Clamping Voltage 28V
Peak Pulse Current 16A
Reverse Standoff Voltage 10V
Peak Pulse Power 450W
Unidirectional Channels 1
Breakdown Voltage 12V
Capacitance @ Frequency 150pF @ 1MHz
Max Breakdown Voltage 13V
Number of Unidirectional Channels 1
Dimensions
Length 1.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
