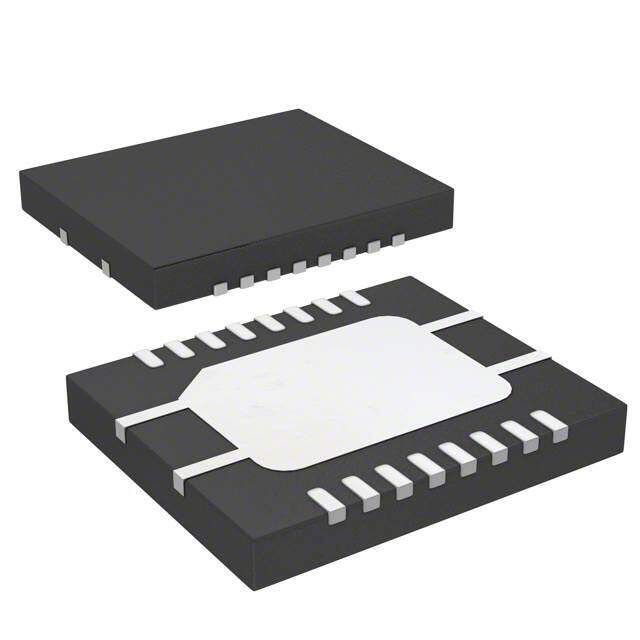

DPIULC6-6DJL
RoHS
RoHS compliant
RoHS compliantPackage 18-VFDFN Exposed Pad
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 3VWM 17VC 18DFN
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66198
≥1 USD $0.66198
≥10 USD $0.637094
≥100 USD $0.616
Inventory: 1339
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 18-VFDFN Exposed Pad
Number of Pins 18
Diode Element Material SILICON
Technical
Operating Temperature -40°C~125°C TJ
Packaging Cut Tape (CT)
Series DPI
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 18
Termination SMD/SMT
ECCN Code EAR99
Type Steering (Rail to Rail)
Terminal Finish Matte Tin (Sn) - annealed
Applications General Purpose
Additional Feature LOW CAPACITANCE
Capacitance 1.5pF
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Depth 5mm
Base Part Number DPIULC6
Pin Count 18
Number of Elements 3
Polarity Bidirectional
Configuration COMPLEX
Number of Channels 6
Leakage Current 100nA
Power Line Protection Yes
Current - Peak Pulse (10/1000μs) 5A 8/20μs
Clamping Voltage 17V
Voltage - Reverse Standoff (Typ) 3V
Reverse Standoff Voltage 3V
Unidirectional Channels 4
Breakdown Voltage 6V
Capacitance @ Frequency 1.5pF @ 1MHz
Max Breakdown Voltage 6V
Dimensions
Length 6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
