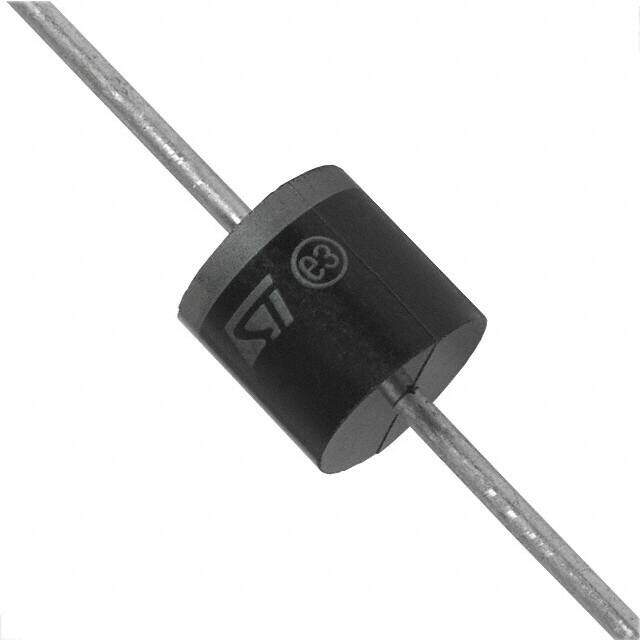

BZW50-15RL
RoHS
RoHS compliant
RoHS compliantPackage R6, Axial
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 15VWM 35VC R6
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $1.99408
≥100 USD $1.58708
≥500 USD $1.34288
Inventory: 1014
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case R6, Axial
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Series BZW50, TRANSIL?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Axial
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn) - annealed
Max Operating Temperature 175°C
Min Operating Temperature -65°C
Applications General Purpose
Additional Feature UL RECOGNIZED
Capacitance 13.5nF
Subcategory Transient Suppressors
Power Rating 5kW
Voltage - Rated DC 15V
Technology AVALANCHE
Terminal Form WIRE
Base Part Number BZW50
Pin Count 2
Operating Supply Voltage 15V
Number of Elements 1
Polarity Unidirectional
Leakage Current 5μA
Element Configuration Single
Power Dissipation 5kW
Case Connection ISOLATED
Power Line Protection No
Power - Peak Pulse 5000W 5kW
Current - Peak Pulse (10/1000μs) 1714A 1.714kA 8/20μs
Max Reverse Leakage Current 5μA
Clamping Voltage 35V
Peak Pulse Current 1.714kA
Reverse Standoff Voltage 15V
Max Surge Current 1mA
Peak Pulse Power 5kW
Test Current 1mA
Breakdown Voltage 16.6V
Capacitance @ Frequency 13500pF @ 1MHz
Reverse Breakdown Voltage 16.6V
Non-rep Peak Rev Power Dis-Max 5000W
Number of Unidirectional Channels 1
Dimensions
Diameter 9.1 mm
Length 9.1mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
