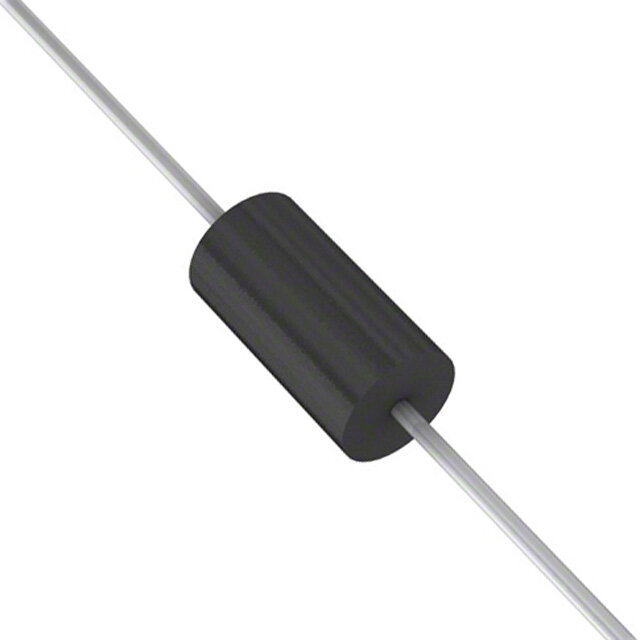

BZW04-5V8B
RoHS
RoHS compliant
RoHS compliantPackage DO-204AC, DO-15, Axial
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5.8VWM 13.4VC DO15
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.27456
≥100 USD $0.251328
≥500 USD $0.187176
≥1000 USD $0.169594
≥3000 USD $0.14036
Inventory: 4086
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Number of Pins 2
Weight 400.011771mg
Diode Element Material SILICON
Technical
Packaging Tape & Box (TB)
Series BZW04, TRANSIL?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Axial
ECCN Code EAR99
Type Zener
Max Operating Temperature 175°C
Min Operating Temperature -65°C
Applications General Purpose
Additional Feature UL RECOGNIZED
Capacitance 3.5nF
Subcategory Transient Suppressors
Power Rating 400W
Voltage - Rated DC 5.8V
Technology AVALANCHE
Terminal Form WIRE
Base Part Number BZW04
Pin Count 2
Operating Supply Voltage 5.8V
Number of Elements 1
Number of Channels 1
Leakage Current 1mA
Element Configuration Single
Power Dissipation 1.7W
Case Connection ISOLATED
Power Line Protection No
Current - Peak Pulse (10/1000μs) 38A
Max Reverse Leakage Current 1mA
Voltage - Clamping (Max) @ Ipp 10.5V
Clamping Voltage 13.4V
Peak Pulse Current 174A
Reverse Standoff Voltage 5.8V
Max Surge Current 174A
Peak Pulse Power 400W
Direction Bidirectional
Test Current 10mA
Breakdown Voltage 6.45V
Capacitance @ Frequency 1750pF @ 1MHz
Reverse Breakdown Voltage 6.45V
Max Breakdown Voltage 6.45V
Dimensions
Diameter 3.53 mm
Height 3.53mm
Length 6.75mm
Width 3.53mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
