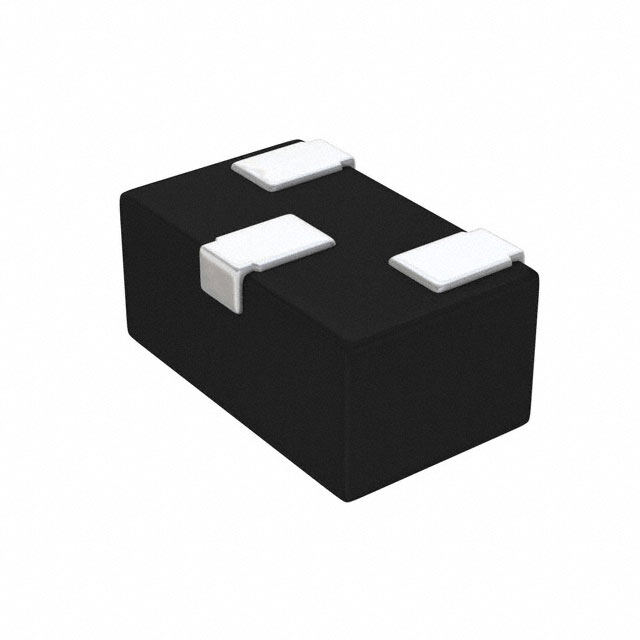

UCLAMP0552T.TNT
RoHS
RoHS compliant
RoHS compliantPackage 3-XDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5VWM 15VC SLP1006N3T
PDF
/
Inventory: 956
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 3-XDFN
Number of Pins 3
Supplier Device Package SLP1006N3T
Technical
Operating Temperature -55°C~125°C TJ
Packaging Tape & Reel (TR)
Series uClamp?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Zener
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Composition Zener
Applications General Purpose
Base Part Number UCLAMP
Power Line Protection No
Voltage - Breakdown (Min) 6V
Power - Peak Pulse 30W
Current - Peak Pulse (10/1000μs) 2A 8/20μs
Voltage - Clamping (Max) @ Ipp 15V
Clamping Voltage 15V
Voltage - Reverse Standoff (Typ) 5V Max
Peak Pulse Current 2A
Reverse Standoff Voltage 5V
Peak Pulse Power 30W
Bidirectional Channels 2
Capacitance @ Frequency 7pF @ 1MHz
Number of Bidirectional Channels 2
Compliance
RoHS Status RoHS Compliant
