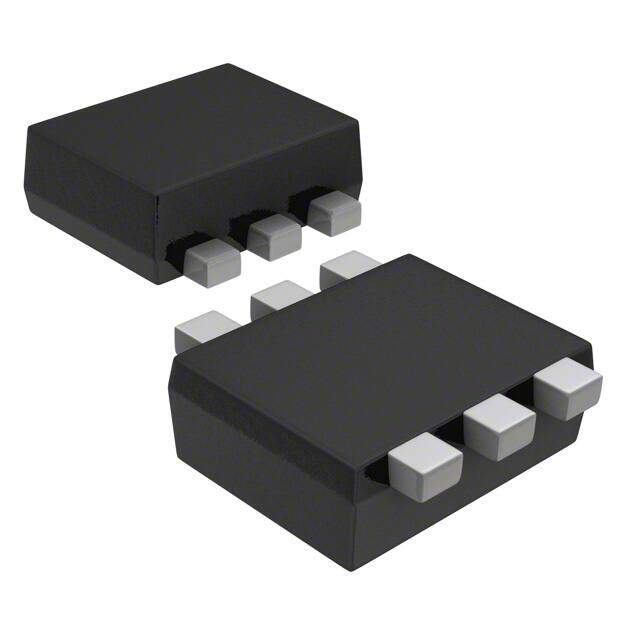

UCLAMP0504A.TCT image
Favorite
UCLAMP0504A.TCT image
Favorite

UCLAMP0504A.TCT

Semtech Corporation
RoHS
RoHS RoHS compliant
Package SOT-563, SOT-666
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 5V 12V SC89-6
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.3952
≥1 USD $0.3952
≥10 USD $0.32395
≥100 USD $0.31445
≥500 USD $0.304
≥1000 USD $0.29355
Inventory: 1240
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 1.25mm
Length 1.7mm

Technical

Max Breakdown Voltage 6V
Reverse Breakdown Voltage 6V
Capacitance @ Frequency 60pF @ 1MHz
Rep Pk Reverse Voltage-Max 5V
Breakdown Voltage 6V
Unidirectional Channels 4
Test Current 1mA
Peak Pulse Power 100W
Reverse Standoff Voltage 5V
Peak Pulse Current 7A
Voltage - Reverse Standoff (Typ) 5V Max
Clamping Voltage 12V
Current - Peak Pulse (10/1000μs) 7A 8/20μs
Power Line Protection No
Leakage Current 1μA
Polarity Unidirectional
Working Voltage 5V
Number of Elements 4
Operating Supply Voltage 5V
Pin Count 6
Base Part Number UCLAMP
Time@Peak Reflow Temperature-Max (s) 10
Depth 1.25mm
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology AVALANCHE
Max Power Dissipation 100W
Voltage - Rated DC 5V
Power Rating 100W
Subcategory Transient Suppressors
Capacitance 75pF
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Zener
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series uClamp?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C TJ

Physical

Diode Element Material SILICON
Number of Pins 6
Package / Case SOT-563, SOT-666
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
