RoHS
RoHS compliant

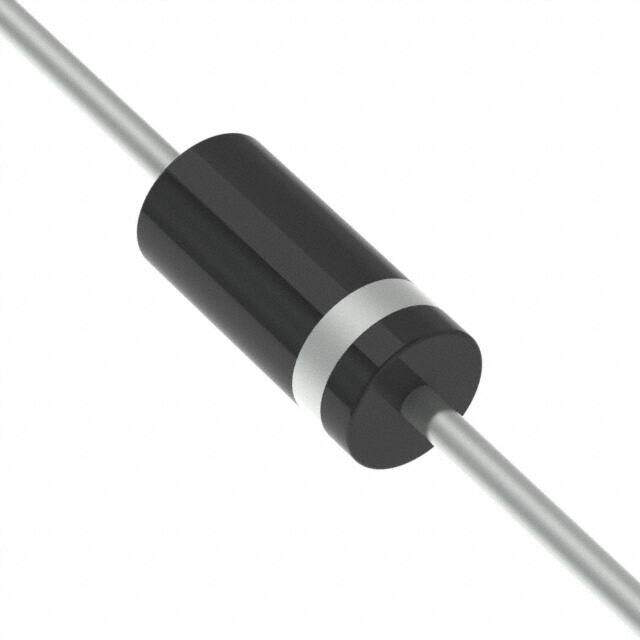

RoHS compliantPackage DO-204AC, DO-15, Axial
Category Circuit Protection / TVS - Diodes
Description
TRANS VOLTAGE SUPPRESSOR DIODE
PDF
/
Buying Options
Total Price: USD $0.13
Unit Price: USD $0.132
≥1 USD $0.132
Inventory: 6938
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Surface Mount NO
Diode Element Material SILICON
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tape & Reel (TR)
Series SA
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type Zener
Terminal Finish MATTE TIN
Applications General Purpose
Technology AVALANCHE
Terminal Form WIRE
Pin Count 2
JESD-30 Code O-PALF-W2
Qualification Status COMMERCIAL
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Power Dissipation-Max 1W
Case Connection ISOLATED
Power Line Protection No
Voltage - Breakdown (Min) 31.1V
Power - Peak Pulse 500W
Current - Peak Pulse (10/1000μs) 11.2A
Voltage - Clamping (Max) @ Ipp 45.4V
Voltage - Reverse Standoff (Typ) 28V
Unidirectional Channels 1
Non-rep Peak Rev Power Dis-Max 500W
Compliance
RoHS Status ROHS3 Compliant
