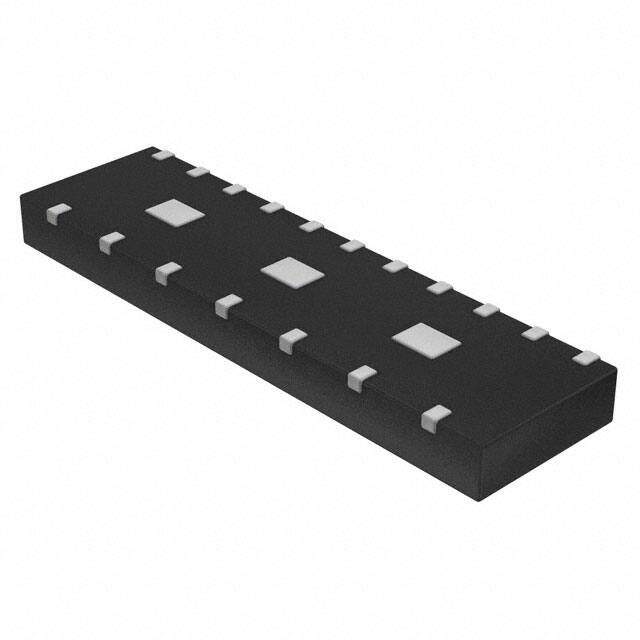

MG2040MUTAG
RoHS
RoHS compliant
RoHS compliantPackage 18-UFDFN Exposed Pad
Category Circuit Protection / TVS - Diodes
Description
ESD Protection Diode, Low Capacitance, High Speed Video Interface
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.8448
≥1 USD $0.8448
≥10 USD $0.6908
≥100 USD $0.537328
≥500 USD $0.45547
≥1000 USD $0.371034
Inventory: 17350
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mounting Type Surface Mount
Package / Case 18-UFDFN Exposed Pad
Surface Mount YES
Number of Pins 18
Diode Element Material SILICON
Technical
Operating Temperature -55°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Type Zener
Applications HDMI
Additional Feature ULTRA LOW CAPACITANCE
HTS Code 8541.10.00.50
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Depth 1.5mm
Base Part Number MG2040
Pin Count 18
Reference Standard IEC-61000-4-2
Operating Supply Voltage 5V
Number of Elements 14
Working Voltage 5V
Leakage Current 1μA
Element Configuration Common Anode
Power Line Protection No
Current - Peak Pulse (10/1000μs) 1A 8/20μs
Max Reverse Leakage Current 1μA
Voltage - Clamping (Max) @ Ipp 10V
Clamping Voltage 10V
Voltage - Reverse Standoff (Typ) 5V Max
Peak Pulse Current 1A
Reverse Standoff Voltage 5V
Max Surge Current 30A
Direction Unidirectional
Halogen Free Halogen Free
Test Current 1mA
Breakdown Voltage 5.5V
Rep Pk Reverse Voltage-Max 5V
Capacitance @ Frequency 0.35pF @ 1MHz
Number of Lines 14
ESD Protection Yes
Dimensions
Height 450μm
Length 5.5mm
Width 1.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
