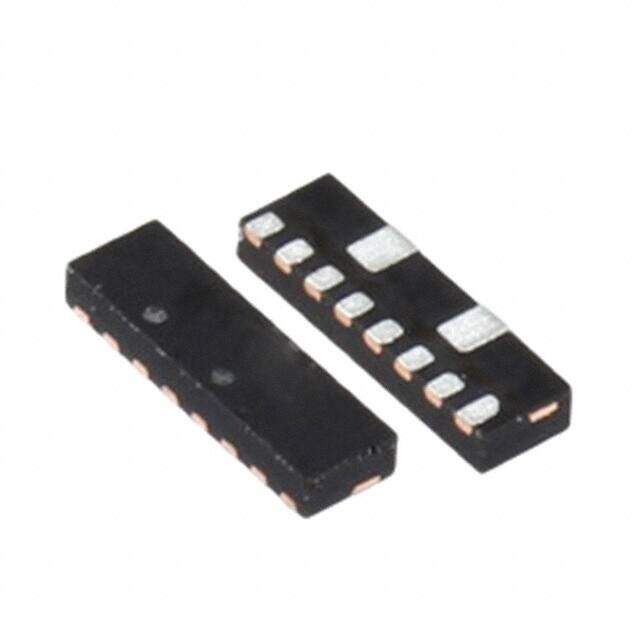

ESD8006MUTAG

ON Semiconductor
RoHS
RoHS RoHS compliant
Package 10-UFDFN
Category Circuit Protection / TVS - Diodes
Description LOW CAP ESD PROTECTIONUDFN8 3.31.5 DUALPBF Code = 0324
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.65912
≥100 USD $0.512952
≥500 USD $0.434755
≥1000 USD $0.354147
Inventory: 9272
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 1mm
Length 3.3mm
Height 550μm

Technical

ESD Protection Yes
Capacitance @ Frequency 0.32pF @ 1MHz
Breakdown Voltage 7V
Unidirectional Channels 6
Test Current 1mA
Direction Unidirectional
Reverse Standoff Voltage 3.3V
Peak Pulse Current 16A
Voltage - Reverse Standoff (Typ) 3.3V Max
Clamping Voltage 8.4V
Voltage - Clamping (Max) @ Ipp 8.4V Typ
Max Reverse Leakage Current 1μA
Voltage - Breakdown (Min) 5.5V
Power Line Protection No
Element Configuration Common Anode
Working Voltage 3.3V
Number of Elements 6
Operating Supply Voltage 3.3V
JESD-30 Code R-PDSO-N10
Pin Count 8
Base Part Number ESD8006
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
Capacitance 320FF
Additional Feature ULTRA LOW CAPACITANCE
Applications USB
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C TJ

Physical

Diode Element Material SILICON
Number of Pins 8
Package / Case 10-UFDFN
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 10 Weeks
