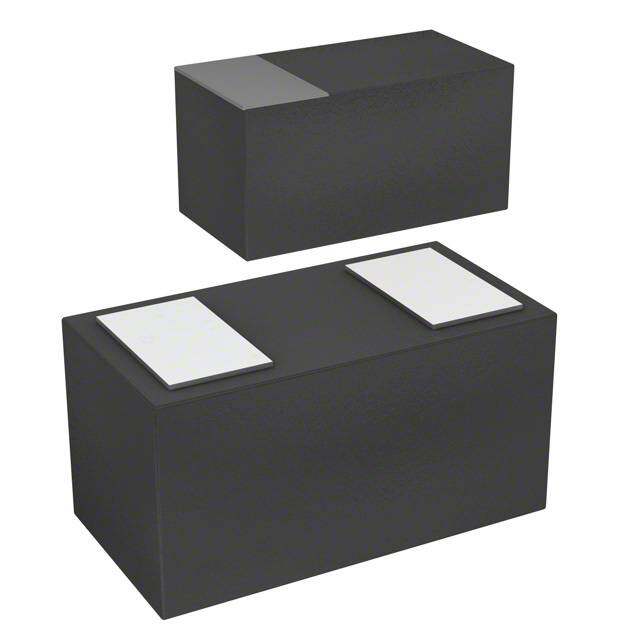

PESD5V0R1BSF
RoHS
/
Package SOD
Category Circuit Protection / TVS - Diodes
Description
PDF
/
Buying Options
Total Price: USD $0.08
Unit Price: USD $0.0836
≥1 USD $0.0836
≥10 USD $0.0684
≥100 USD $0.0665
≥500 USD $0.0646
≥1000 USD $0.06175
≥10000 USD $0.05605
Inventory: 73453
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Technical
Voltage - Clamping 9.2V
Number of Bidirectional Channels 1
Rep Pk Reverse Voltage-Max 5V
Reverse Standoff Voltage 5V
Peak Pulse Current 4.5A
Voltage - Breakdown (Min) 6V
Power Line Protection No
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Configuration SINGLE
Polarity BIDIRECTIONAL
Number of Elements 1
Operating Supply Voltage 5V
Terminal Position BOTTOM
Technology AVALANCHE
Composition Zener
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code yes
Published 2015
Packaging Cut Tape
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case SOD
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
