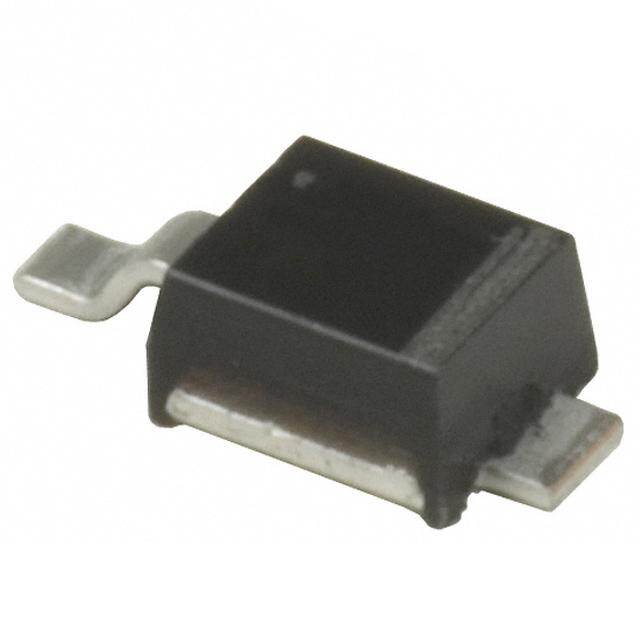

UPT33RE3/TR7
RoHS
/
Package /
Category Circuit Protection / TVS - Diodes
Description
Diode TVS Single Uni-Dir 33V 1KW 2-Pin(1+Tab) Power Mite T/R
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.5808
Inventory: 480
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 1.91mm
Technical
Voltage - Working 33V
Voltage - Clamping 56.7V
Number of Unidirectional Channels 1
Current - Leakage 1μA
Reverse Breakdown Voltage 36.8V
Peak Pulse Power 1kW
Reverse Standoff Voltage 33V
Peak Pulse Current 2.65A
Current - Test 1mA
Voltage - Breakdown (Min) 36.8V
Case Connection CATHODE
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Configuration SINGLE
Polarity Unidirectional
Number of Elements 1
Pin Count 2
Terminal Form GULL WING
Terminal Position DUAL
Technology AVALANCHE
Voltage - Rated DC 33V
Power Rating 1kW
Composition Zener
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 1997
Physical
Diode Element Material SILICON
Number of Pins 2
Mount Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 5 Weeks
