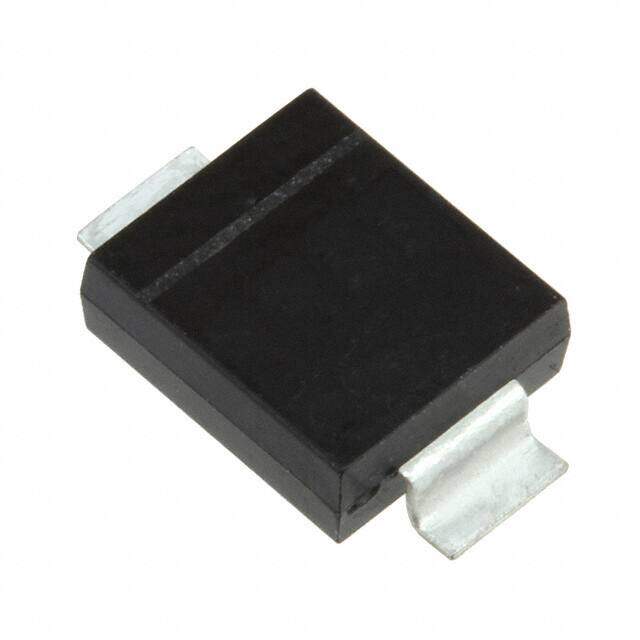

MSMCG18A image
Favorite
MSMCG18A image
Favorite
RoHS
/
Package DO-215AB, SMC Gull Wing
Category Circuit Protection / TVS - Diodes
Description Diode TVS Single Uni-Dir 18V 1.5KW 2-Pin DO-215AB Bulk
PDF
/
Inventory: 4016
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Technical

Unidirectional Channels 1
Test Current 1mA
Direction Unidirectional
Peak Pulse Power 1.5kW
Reverse Standoff Voltage 18V
Peak Pulse Current 51.4A
Clamping Voltage 29.2V
Max Reverse Leakage Current 1μA
Power - Peak Pulse 1500W 1.5kW
Voltage - Breakdown (Min) 20V
Power Line Protection No
Element Configuration Single
Number of Elements 1
Pin Count 2
Terminal Position DUAL
Technology AVALANCHE
Additional Feature HIGH RELIABILITY
Applications General Purpose
Terminal Finish Tin/Lead (Sn/Pb)
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-PRF-19500
Published 1997
Packaging Bulk
Operating Temperature -65°C~150°C TJ

Physical

Diode Element Material SILICON
Number of Pins 2
Package / Case DO-215AB, SMC Gull Wing
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time 13 Weeks
