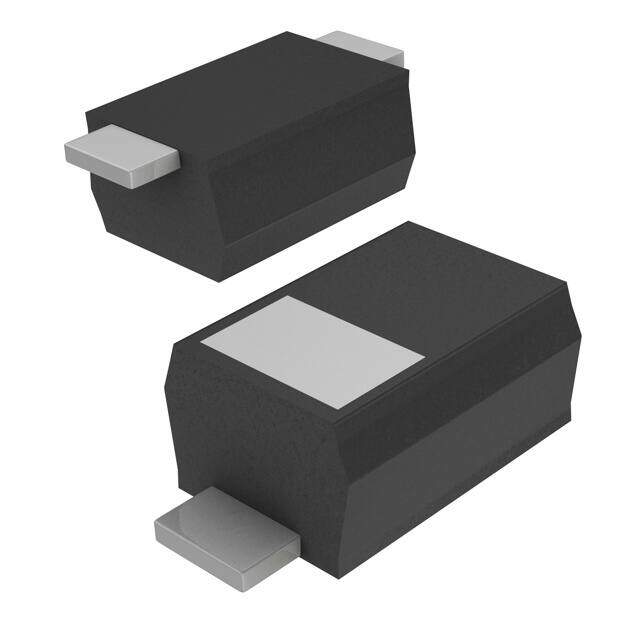

SMF43A-TP
RoHS
RoHS compliant
RoHS compliantPackage SOD-123F
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 43V 69.4V SOD123FL
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.23408
≥100 USD $0.118184
≥500 USD $0.09643
≥1000 USD $0.071544
Inventory: 1157
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Clamping Voltage-Max 69.4V
Non-rep Peak Rev Power Dis-Max 200W
Rep Pk Reverse Voltage-Max 43V
Breakdown Voltage 50.3V
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 43V
Voltage - Clamping (Max) @ Ipp 69.4V
Current - Peak Pulse (10/1000μs) 2.9A
Power - Peak Pulse 200W
Voltage - Breakdown (Min) 47.8V
Power Line Protection No
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
JESD-30 Code R-PDSO-F2
Pin Count 2
Base Part Number SMF*A
Time@Peak Reflow Temperature-Max (s) 10
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -65°C~175°C TA
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case SOD-123F
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
