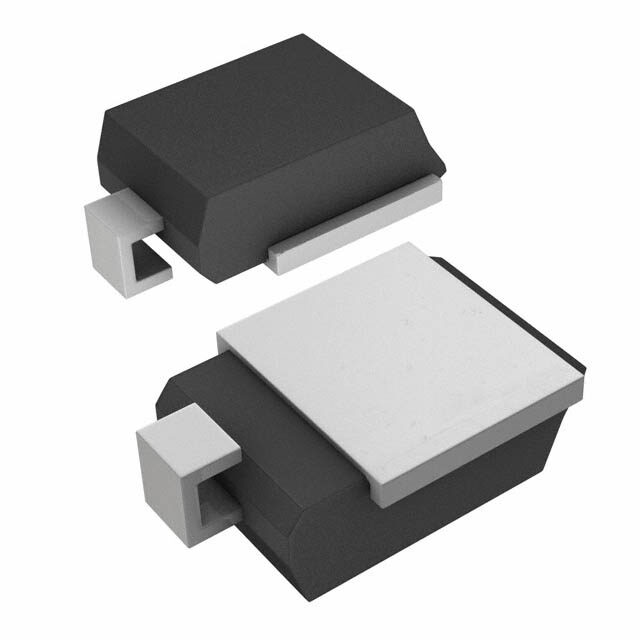

SM8S26A-TP image
Favorite
SM8S26A-TP image
Favorite
RoHS
RoHS RoHS compliant
Package DO-218AB
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 26V 42.1V DO218AB
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.28272
≥100 USD $1.84668
Inventory: 8315
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Surface Mount
Package / Case DO-218AB
Surface Mount YES
Diode Element Material SILICON

Technical

Operating Temperature -55°C~175°C TJ
Packaging Cut Tape (CT)
Published 2015
Series Automotive, AEC-Q101
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
ECCN Code EAR99
Type Zener
Applications Automotive
Additional Feature UL RECOGNIZED
Technology AVALANCHE
Terminal Position SINGLE
Terminal Form C BEND
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Power Dissipation-Max 8W
Power Line Protection No
Voltage - Breakdown (Min) 28.9V
Power - Peak Pulse 6600W 6.6kW
Current - Peak Pulse (10/1000μs) 157A
Voltage - Clamping (Max) @ Ipp 42.1V
Voltage - Reverse Standoff (Typ) 26V
Unidirectional Channels 1
Rep Pk Reverse Voltage-Max 26V
Non-rep Peak Rev Power Dis-Max 5200W

Compliance

RoHS Status ROHS3 Compliant
