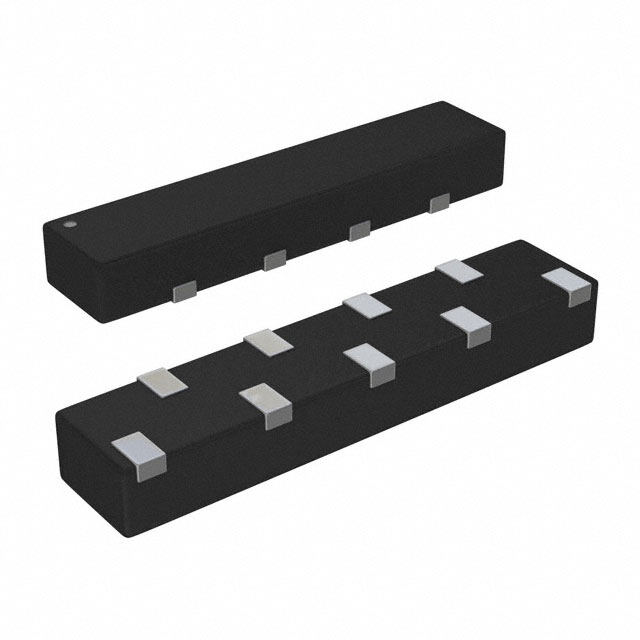

ESDLC5V0PB8-TP
RoHS
RoHS compliant
RoHS compliantPackage 9-UDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5V 20V DFN3810-9
PDF
/
Inventory: 7783
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 9-UDFN
Surface Mount YES
Diode Element Material SILICON
Technical
Operating Temperature -55°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
ECCN Code EAR99
Type Steering (Rail to Rail)
Applications General Purpose
Additional Feature ULTRA LOW CAPACITANCE
Technology AVALANCHE
Terminal Position DUAL
Terminal Form NO LEAD
Reference Standard IEC-61000-4-2, 4-4, 4-5
JESD-30 Code R-PDSO-N9
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Power Line Protection Yes
Voltage - Breakdown (Min) 6V
Power - Peak Pulse 100W
Current - Peak Pulse (10/1000μs) 5A 8/20μs
Voltage - Clamping (Max) @ Ipp 20V
Voltage - Reverse Standoff (Typ) 5V Max
Unidirectional Channels 8
Rep Pk Reverse Voltage-Max 5V
Capacitance @ Frequency 0.29pF @ 1MHz
Non-rep Peak Rev Power Dis-Max 100W
Compliance
RoHS Status ROHS3 Compliant
