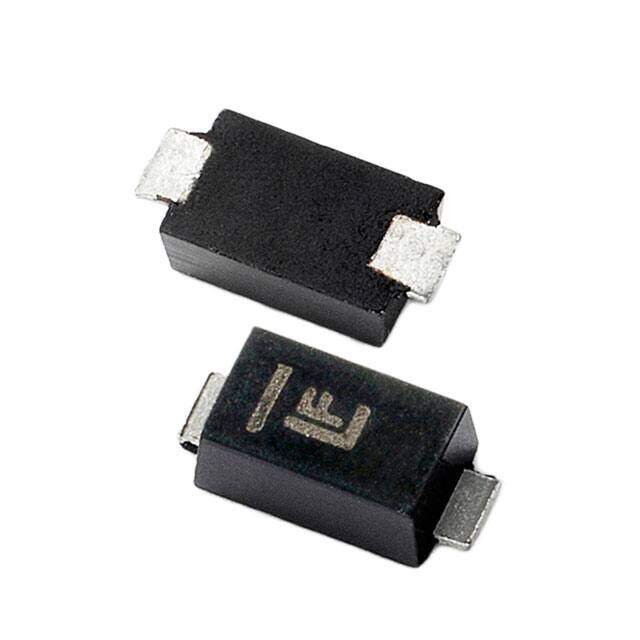

TPSMF4L30A
RoHS
RoHS compliant
RoHS compliantPackage SOD-123F
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 30V 48.4V SOD123FL
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.3608
≥100 USD $0.216392
≥500 USD $0.200394
≥1000 USD $0.136268
Inventory: 20995
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Peak Rev Power Dis-Max 2000W
Rep Pk Reverse Voltage-Max 30V
Breakdown Voltage 33.3V
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Clamping (Max) @ Ipp 48.4V
Current - Peak Pulse (10/1000μs) 8.3A
Power - Peak Pulse 400W
Power Line Protection No
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
JESD-30 Code R-PDSO-F2
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
Technology AVALANCHE
Additional Feature EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED
Applications Automotive
Terminal Finish Matte Tin (Sn)
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q101, TPSMF4L
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case SOD-123F
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
