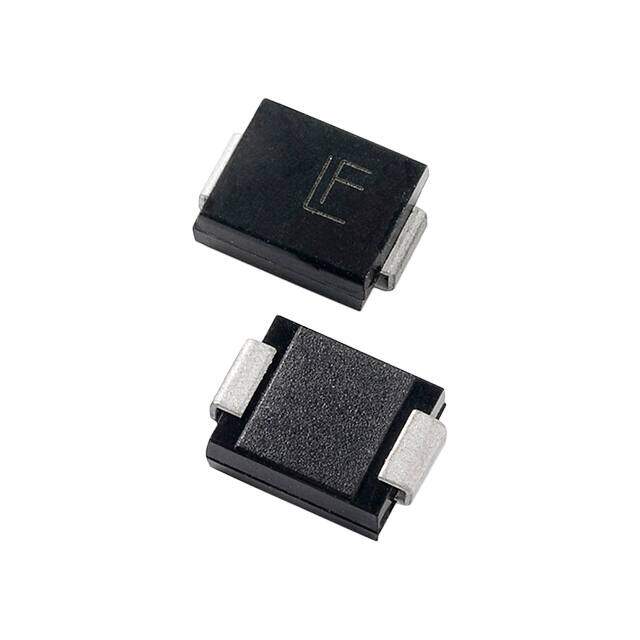

TPSMC30A
RoHS
RoHS compliant
RoHS compliantPackage DO-214AB, SMC
Category Circuit Protection / TVS - Diodes
Description
Diode TVS Single Uni-Dir 25.6V 1.5KW Automotive 2-Pin SMC T/R
PDF
/
Buying Options
Total Price: USD $0.14
Unit Price: USD $0.1387
≥1 USD $0.1387
≥10 USD $0.114
≥100 USD $0.1102
≥500 USD $0.1064
≥1000 USD $0.10355
≥10000 USD $0.09215
Inventory: 78203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Weight 210.013267mg
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2014
Series Automotive, AEC-Q101, TPSMC
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn)
Applications Automotive
Additional Feature EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED
Max Power Dissipation 1.5kW
Technology AVALANCHE
Terminal Position DUAL
Terminal Form J BEND
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code R-PDSO-J2
Number of Elements 1
Working Voltage 3.5V
Polarity Unidirectional
Configuration SINGLE
Power Line Protection No
Voltage - Breakdown (Min) 28.5V
Power - Peak Pulse 1500W 1.5kW
Clamping Voltage 41.4V
Peak Pulse Current 36.7A
Reverse Standoff Voltage 25.6V
Max Surge Current 36.7A
Peak Pulse Power 1.5kW
Unidirectional Channels 1
Breakdown Voltage 31.5V
Dimensions
Height 2.62mm
Length 7.11mm
Width 6.22mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
