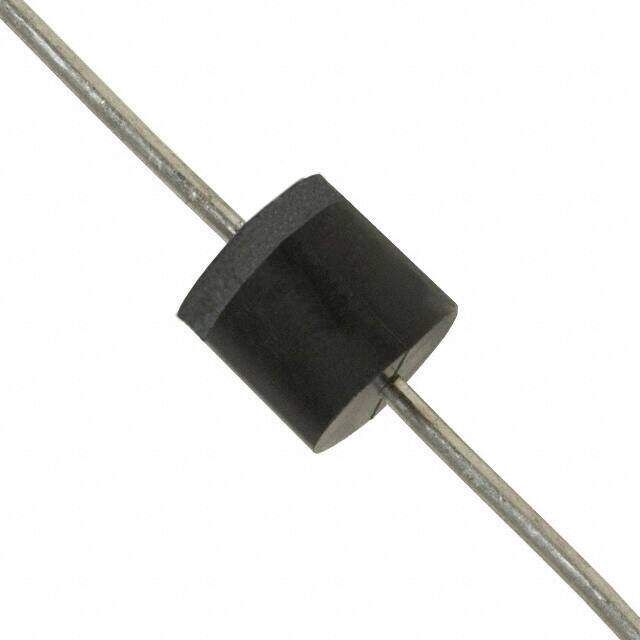

TP5KP24A
RoHS
RoHS compliant
RoHS compliantPackage P600, Axial
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 24V 38.9V P600
PDF
/
Buying Options
Total Price: USD $2.19
Unit Price: USD $2.190607
≥1 USD $2.190607
≥10 USD $2.06661
≥100 USD $1.949629
≥500 USD $1.839273
≥1000 USD $1.735163
Inventory: 1494
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Through Hole
Package / Case P600, Axial
Surface Mount NO
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2016
Series Automotive, AEC-Q101, TP5KP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Applications Automotive
Additional Feature EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED
Technology AVALANCHE
Terminal Form WIRE
JESD-30 Code O-PALF-W2
Number of Elements 1
Polarity UNIDIRECTIONAL
Configuration SINGLE
Power Dissipation-Max 8W
Case Connection ISOLATED
Power Line Protection No
Power - Peak Pulse 5000W 5kW
Current - Peak Pulse (10/1000μs) 131.1A
Voltage - Clamping (Max) @ Ipp 38.9V
Voltage - Reverse Standoff (Typ) 24V
Unidirectional Channels 1
Breakdown Voltage 26.7V
Rep Pk Reverse Voltage-Max 24V
Non-rep Peak Rev Power Dis-Max 5000W
Compliance
RoHS Status ROHS3 Compliant
