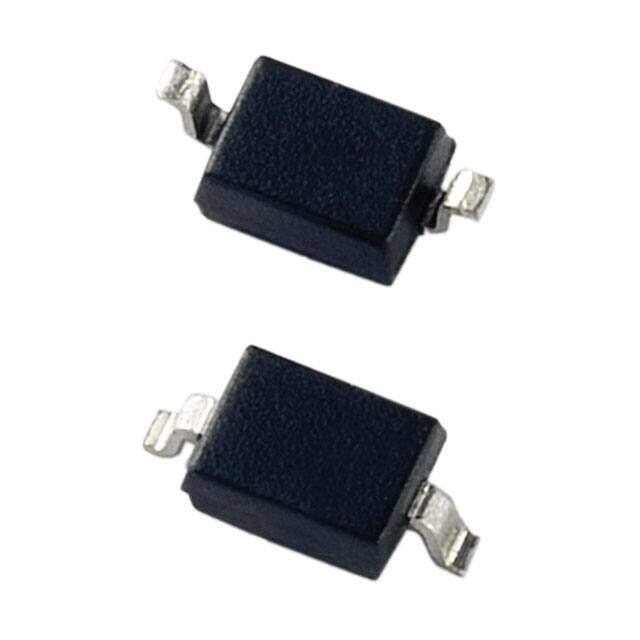

SP4023-01FTG
RoHS
RoHS compliant
RoHS compliantPackage SC-76, SOD-323
Category Circuit Protection / TVS - Diodes
Description
TVS Diode Arrays 1.3pF 12A UNIDIRECTIONAL
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.76095
≥1 USD $0.76095
≥10 USD $0.62415
≥100 USD $0.60515
≥500 USD $0.5852
≥1000 USD $0.5662
Inventory: 1071
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2015
Series Automotive, AEC-Q101, SP4023, SPA?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Steering (Rail to Rail)
Applications Automotive
Additional Feature LOW CAPACITANCE
Technology AVALANCHE
Terminal Position DUAL
Terminal Form GULL WING
Operating Supply Voltage 15V
Number of Elements 1
Polarity Unidirectional
Configuration SINGLE
Power Line Protection No
Current - Peak Pulse (10/1000μs) 12A 8/20μs
Voltage - Clamping (Max) @ Ipp 40V
Clamping Voltage 40V
Voltage - Reverse Standoff (Typ) 15V Max
Peak Pulse Current 12A
Reverse Standoff Voltage 15V
Max Surge Current 12A
Peak Pulse Power 450W
Unidirectional Channels 1
Breakdown Voltage 16V
Capacitance @ Frequency 1.3pF @ 1MHz
Compliance
RoHS Status ROHS3 Compliant
