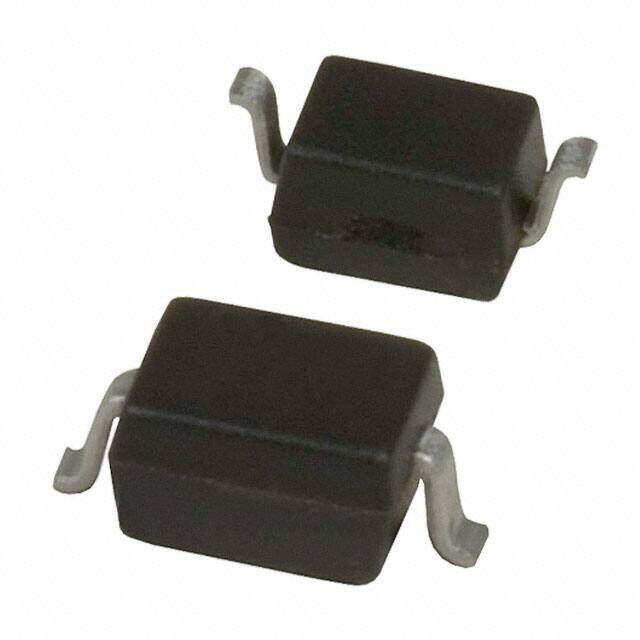

SP4021-01FTG-C
RoHS
RoHS compliant
RoHS compliantPackage SC-76, SOD-323
Category Circuit Protection / TVS - Diodes
Description
TVS Diode Arrays 2.5pF 25A BI for Surge Protection
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.49368
≥100 USD $0.343024
≥500 USD $0.267854
≥1000 USD $0.217712
Inventory: 28866
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Number of Pins 2
Diode Element Material SILICON
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2015
Series SP4021, SPA?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Steering (Rail to Rail)
Applications Ethernet
Additional Feature LOW CAPACITANCE
Max Power Dissipation 600W
Technology AVALANCHE
Terminal Position DUAL
Terminal Form GULL WING
Operating Supply Voltage 5V
Number of Elements 1
Working Voltage 5V
Polarity Bidirectional
Configuration SINGLE
Power Line Protection No
Current - Peak Pulse (10/1000μs) 24A 8/20μs
Voltage - Clamping (Max) @ Ipp 19.6V Typ
Clamping Voltage 19.6V
Voltage - Reverse Standoff (Typ) 5V Max
Peak Pulse Current 24A
Reverse Standoff Voltage 5V
Max Surge Current 25A
Peak Pulse Power 600W
Breakdown Voltage 6.3V
Bidirectional Channels 1
Rep Pk Reverse Voltage-Max 5V
Capacitance @ Frequency 2.5pF @ 1MHz
Dimensions
Height 1mm
Length 2.7mm
Width 1.4mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
