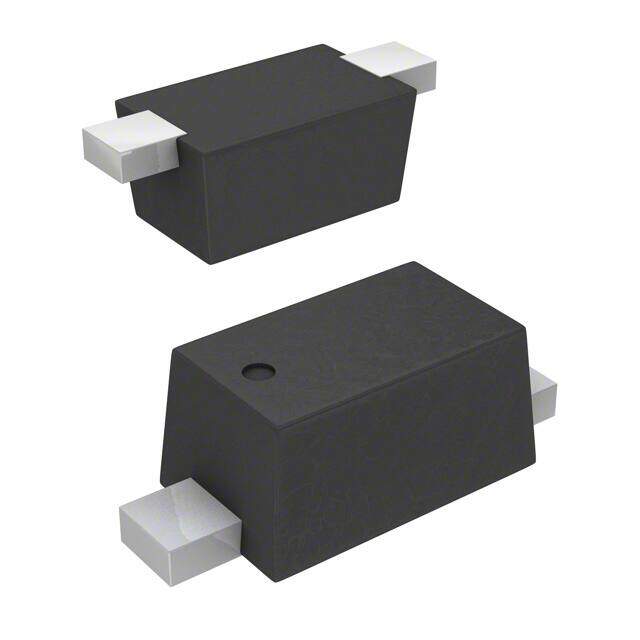

SP1003-01DTG
RoHS
RoHS compliant
RoHS compliantPackage SOD-723
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5V 12V SOD723
PDF
/
Buying Options
Total Price: USD $0.06
Unit Price: USD $0.059937
≥1 USD $0.059937
≥10 USD $0.048264
≥100 USD $0.042427
≥500 USD $0.038049
≥1000 USD $0.033523
≥16000 USD $0.015371
Inventory: 3929
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 650μm
Technical
Reverse Breakdown Voltage 6V
Rep Pk Reverse Voltage-Max 5V
Breakdown Voltage 6V
Test Current 1mA
Direction Unidirectional
Max Surge Current 7A
Reverse Standoff Voltage 5V
Peak Pulse Current 7A
Voltage - Reverse Standoff (Typ) 5V Max
Clamping Voltage 12V
Voltage - Clamping (Max) @ Ipp 12V Typ
Current - Peak Pulse (10/1000μs) 7A 8/20μs
Power Line Protection No
Leakage Current 100nA
Configuration SINGLE
Polarity Bidirectional, Unidirectional
Number of Elements 1
Operating Supply Voltage 800mV
Pin Count 2
Time@Peak Reflow Temperature-Max (s) 40
Peak Reflow Temperature (Cel) 255
Terminal Form FLAT
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
Capacitance 30pF
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SP1003, SPA?
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case SOD-723
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
