SP1001-04XTG
RoHS
RoHS compliant

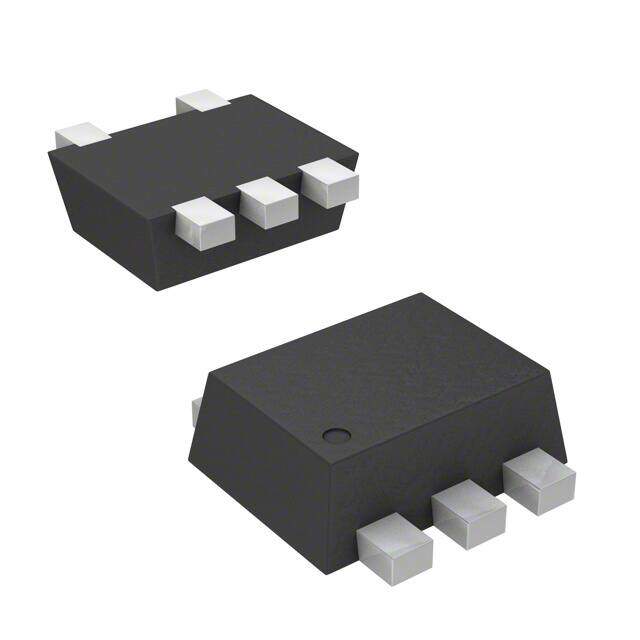

RoHS compliantPackage SOT-553
Category Circuit Protection / TVS - Diodes
Description
ESD Suppressor TVS Uni-Dir 5.5V 5-Pin SOT-553 T/R
PDF
/
Buying Options
Total Price: USD $0.1
Unit Price: USD $0.104788
≥1 USD $0.104788
≥10 USD $0.086474
≥100 USD $0.077317
≥500 USD $0.070449
≥1000 USD $0.057492
Inventory: 1164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-553
Number of Pins 5
Diode Element Material SILICON
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
Published 2010
Series SP1001, SPA?
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Termination SMD/SMT
ECCN Code EAR99
Type Zener
Terminal Finish Matte Tin (Sn)
Applications General Purpose
Additional Feature LOW CAPACITANCE
Capacitance 12pF
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position DUAL
Terminal Form FLAT
Depth 1.3mm
Pin Count 5
Operating Supply Voltage 900mV
Number of Elements 4
Working Voltage 5.5V
Polarity Bidirectional, Unidirectional
Leakage Current 500nA
Power Line Protection No
Voltage - Breakdown (Min) 7V
Current - Peak Pulse (10/1000μs) 2A 8/20μs
Clamping Voltage 13V
Voltage - Reverse Standoff (Typ) 5.5V Max
Peak Pulse Current 2A
Reverse Standoff Voltage 5.5V
Max Surge Current 2A
Direction Unidirectional
Breakdown Voltage 5.5V
Dimensions
Height 600μm
Length 1.7mm
Width 1.3mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
