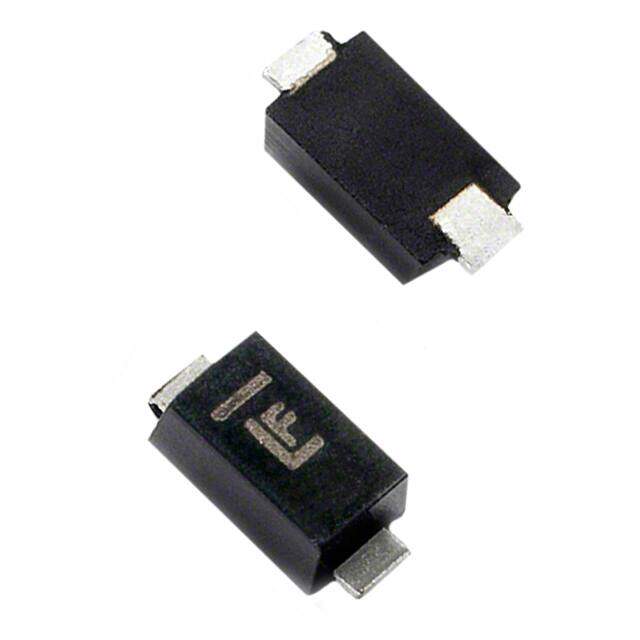

SMF4L24A
RoHS
RoHS compliant
RoHS compliantPackage SOD-123F
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 24V 38.9V SOD123FL
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.29656
≥100 USD $0.178112
≥500 USD $0.16493
≥1000 USD $0.112156
Inventory: 3546
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Peak Rev Power Dis-Max 2000W
Rep Pk Reverse Voltage-Max 24V
Breakdown Voltage 26.7V
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Clamping (Max) @ Ipp 38.9V
Current - Peak Pulse (10/1000μs) 10.3A
Power - Peak Pulse 400W
Power Line Protection No
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
JESD-30 Code R-PDSO-F2
Terminal Form FLAT
Terminal Position DUAL
Technology AVALANCHE
Additional Feature EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Applications General Purpose
Type Zener
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SMF4L
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case SOD-123F
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
