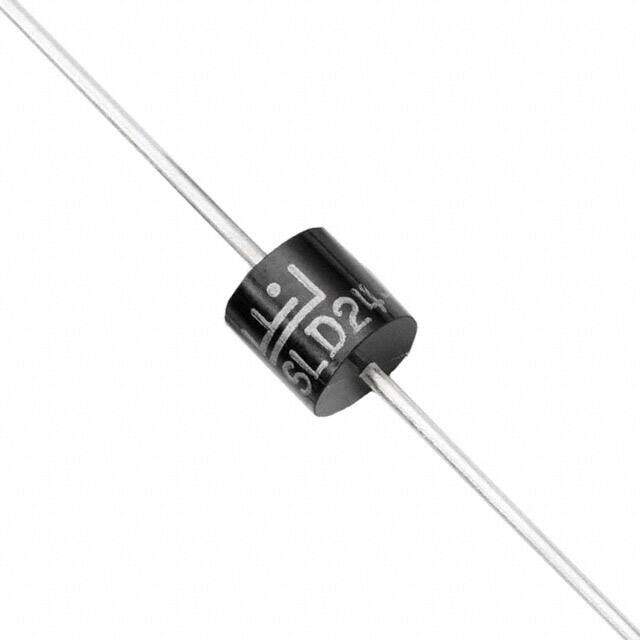

SLD48U-017-B
RoHS
RoHS compliant
RoHS compliantPackage P600, Axial
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 48VWM 77.4VC AXIAL
PDF
/
Buying Options
Total Price: USD $2.33
Unit Price: USD $2.327069
≥1 USD $2.327069
≥10 USD $2.195346
≥100 USD $2.071086
≥500 USD $1.953852
≥1000 USD $1.843254
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case P600, Axial
Technical
Operating Temperature -55°C~175°C TJ
Packaging Bulk
Published 2014
Series Automotive, AEC-Q101, SLD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Zener
Applications Automotive
Power Line Protection No
Voltage - Breakdown (Min) 53.3V
Power - Peak Pulse 5000W 5kW
Current - Peak Pulse (10/1000μs) 65.9A
Clamping Voltage 77.4V
Peak Pulse Current 65.9A
Reverse Standoff Voltage 48V
Peak Pulse Power 5kW
Unidirectional Channels 1
Compliance
RoHS Status ROHS3 Compliant
