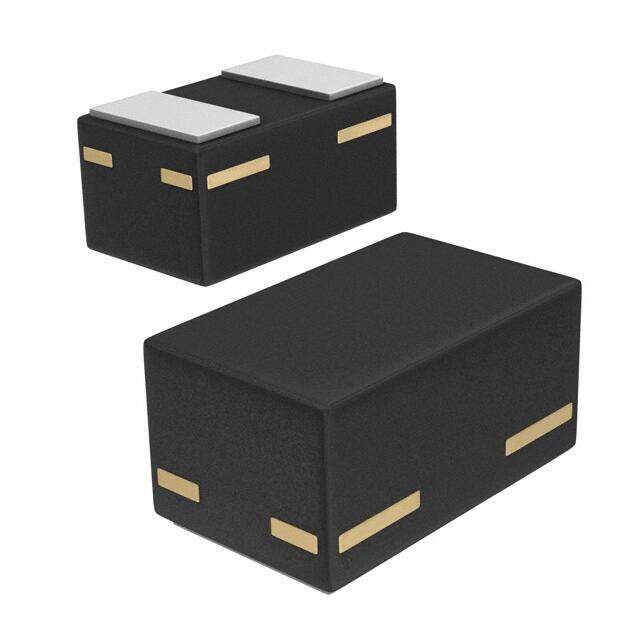

AQHV36-01ETG
RoHS
RoHS compliant
RoHS compliantPackage SOD-882
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE ESD 200W 36V SOD882
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.29832
≥100 USD $0.15048
≥500 USD $0.133338
≥1000 USD $0.103761
≥3000 USD $0.092866
Inventory: 7198
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Peak Rev Power Dis-Max 200W
Capacitance @ Frequency 25pF @ 1MHz
JEDEC-95 Code MO-236
Rep Pk Reverse Voltage-Max 36V
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36V Max
Voltage - Clamping (Max) @ Ipp 60V
Current - Peak Pulse (10/1000μs) 2A 8/20μs
Power - Peak Pulse 200W 8/20μs
Voltage - Breakdown (Min) 40V
Power Line Protection No
Configuration SINGLE
Polarity UNIDIRECTIONAL
Number of Elements 1
JESD-30 Code R-PBCC-N2
Terminal Position BOTTOM
Technology AVALANCHE
Applications Automotive
Type Zener
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q101, AQHV
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case SOD-882
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
