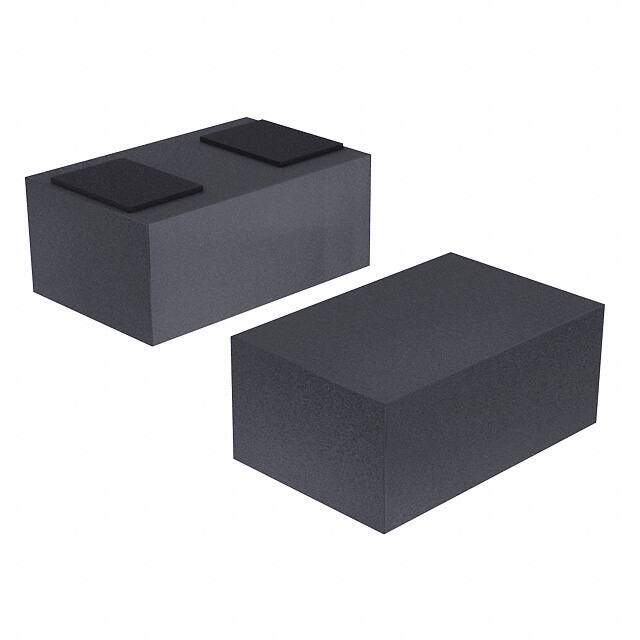

CPDER5V0-HF
RoHS
RoHS compliant
RoHS compliantPackage 0503 (1308 Metric)
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5V 15V 0503/SOD723F
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.184449
≥1 USD $0.184449
≥10 USD $0.180525
≥100 USD $0.177908
Inventory: 23
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0503 (1308 Metric)
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Published 2011
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Terminal Finish Gold (Au)
Applications General Purpose
Subcategory Transient Suppressors
Technology AVALANCHE
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code R-PBCC-N2
Operating Temperature (Min) -40°C
Number of Elements 1
Polarity BIDIRECTIONAL
Configuration SINGLE
Power Line Protection No
Voltage - Breakdown (Min) 5.1V
Current - Peak Pulse (10/1000μs) 5A 8/20μs
Clamping Voltage 15V
Voltage - Reverse Standoff (Typ) 5V
Peak Pulse Current 5A
Reverse Standoff Voltage 5V
Peak Pulse Power 75W
Breakdown Voltage 7V
Bidirectional Channels 1
Rep Pk Reverse Voltage-Max 5V
Capacitance @ Frequency 15pF @ 1MHz
Compliance
RoHS Status ROHS3 Compliant
