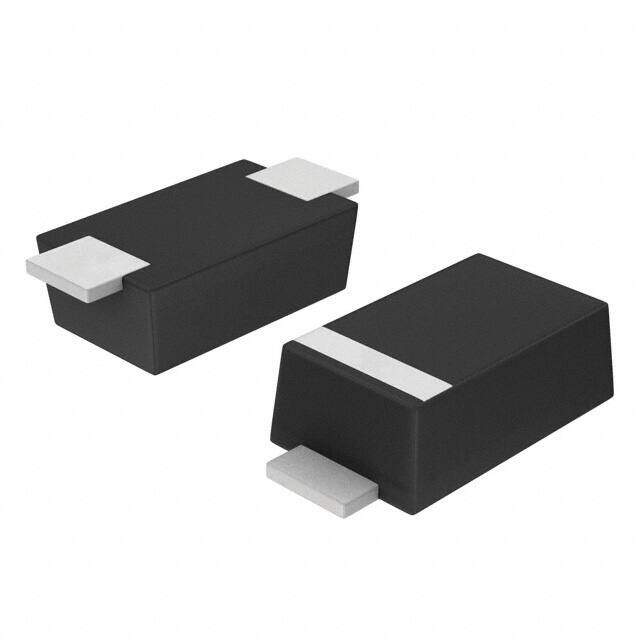

ATV02W6V0B-HF image
Favorite
ATV02W6V0B-HF image
Favorite

ATV02W6V0B-HF

Comchip Technology
RoHS
RoHS RoHS compliant
Package SOD-123F
Category Circuit Protection / TVS - Diodes
Description ESD Suppressors / TVS Diodes 200W 6V BI-DIRECTION AEC-Q101
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.28512
≥100 USD $0.171072
≥500 USD $0.158435
≥1000 USD $0.10773
Inventory: 1627
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOD-123F
Diode Element Material SILICON

Technical

Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2014
Series Automotive, AEC-Q101
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Terminal Finish Tin (Sn)
Applications Automotive
Additional Feature EXCELLENT CLAMPING CAPABILITY
Technology AVALANCHE
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 30
JESD-30 Code R-PDSO-F2
Number of Elements 1
Polarity BIDIRECTIONAL
Configuration SINGLE
Power Dissipation-Max 0.4W
Power Line Protection No
Voltage - Breakdown (Min) 6.67V
Current - Peak Pulse (10/1000μs) 19.42A
Clamping Voltage 10.3V
Voltage - Reverse Standoff (Typ) 6V
Peak Pulse Current 19.42A
Reverse Standoff Voltage 6V
Peak Pulse Power 200W
Bidirectional Channels 1
Rep Pk Reverse Voltage-Max 6V

Compliance

RoHS Status ROHS3 Compliant
