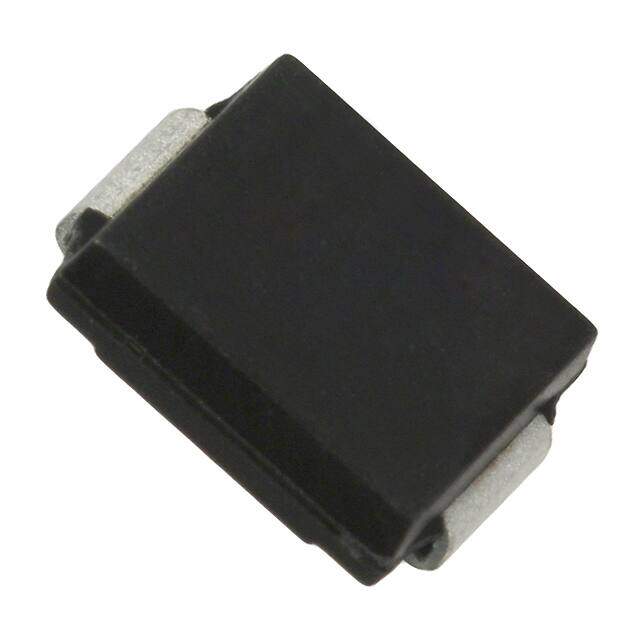

SMLJ15A
RoHS
RoHS compliant
RoHS compliantPackage DO-214AB, SMC
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 15VWM 24.4VC DO214AB
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.71984
≥100 USD $0.559944
≥500 USD $0.474619
≥1000 USD $0.386628
Inventory: 1507
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Non-rep Peak Rev Power Dis-Max 3000W
Reverse Breakdown Voltage 16.7V
Breakdown Voltage 18.5V
Test Current 1mA
Peak Pulse Power 3kW
Max Surge Current 300A
Reverse Standoff Voltage 15V
Peak Pulse Current 123A
Clamping Voltage 24.4V
Max Reverse Leakage Current 5μA
Power - Peak Pulse 3000W 3kW
Voltage - Breakdown (Min) 16.7V
Power Line Protection No
Element Configuration Single
Leakage Current 5μA
Polarity Unidirectional
Number of Elements 1
Operating Supply Voltage 3.5V
Pin Count 2
Base Part Number SMLJ15
Terminal Form C BEND
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SMLJ
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-214AB, SMC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
