CDSOT23-T24
RoHS
RoHS compliant
RoHS compliantPackage TO-236-3, SC-59, SOT-23-3
Category Circuit Protection / TVS - Diodes
Description
ESD Suppressor TVS ±30KV 3-Pin SOT-23
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.33264
≥100 USD $0.231088
≥500 USD $0.180435
≥1000 USD $0.146652
Inventory: 15463
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Number of Pins 3
Diode Element Material SILICON
Technical
Operating Temperature -55°C~150°C TJ
Packaging Tape & Reel (TR)
Published 2012
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination SMD/SMT
ECCN Code EAR99
Type Zener
Applications General Purpose
Capacitance 88pF
Subcategory Transient Suppressors
Max Power Dissipation 500W
Technology AVALANCHE
Terminal Position DUAL
Terminal Form GULL WING
Depth 1.4mm
Base Part Number CDSOT23
Pin Count 3
Operating Supply Voltage 24V
Number of Elements 1
Working Voltage 24V
Polarity Unidirectional
Leakage Current 1μA
Element Configuration Common Anode
Power Line Protection No
Current - Peak Pulse (10/1000μs) 12A 8/20μs
Clamping Voltage 49V
Peak Pulse Current 12A
Reverse Standoff Voltage 24V
Max Surge Current 12A
Peak Pulse Power 500W
Unidirectional Channels 1
Breakdown Voltage 26.7V
Capacitance @ Frequency 88pF @ 1MHz
Dimensions
Length 3.04mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant

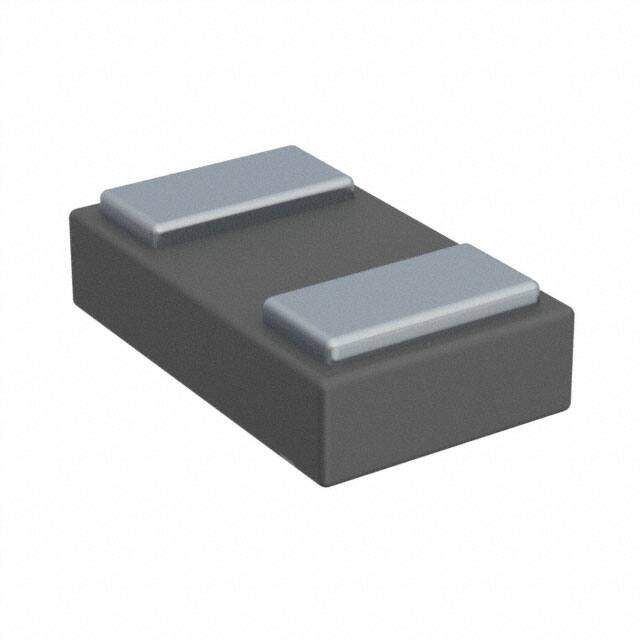

Alternative Model
