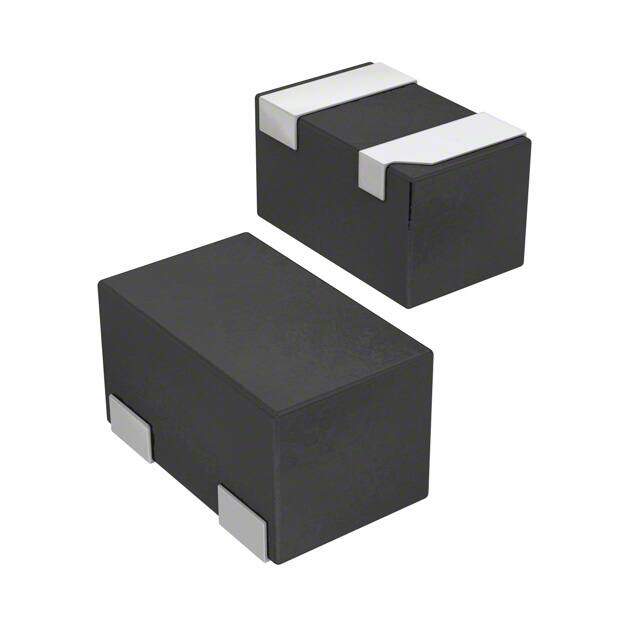

CDDFN2-T5.0LC
RoHS
RoHS compliant
RoHS compliantPackage 2-UFDFN
Category Circuit Protection / TVS - Diodes
Description
TVS DIODE 5VWM 25VC DFN2
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.352
≥1 USD $0.352
≥10 USD $0.2992
≥100 USD $0.207944
≥500 USD $0.162378
≥1000 USD $0.131982
≥3000 USD $0.11799
Inventory: 8444
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 1mm
Technical
Max Breakdown Voltage 7V
Capacitance @ Frequency 0.5pF @ 1MHz
Rep Pk Reverse Voltage-Max 5V
Breakdown Voltage 7V
Direction Bidirectional
Max Surge Current 5A
Reverse Standoff Voltage 5V
Voltage - Reverse Standoff (Typ) 5V Max
Clamping Voltage 25V
Voltage - Clamping (Max) @ Ipp 25V Typ
Power Line Protection No
Element Configuration Single
Leakage Current 1μA
Number of Channels 1
Working Voltage 5V
Number of Elements 1
Operating Supply Voltage 5V
Pin Count 2
Base Part Number CDDFN2
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
Capacitance 12pF
Additional Feature LOW CAPACITANCE
Applications General Purpose
Terminal Finish Tin (Sn)
Type Zener
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case 2-UFDFN
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 18 Weeks
