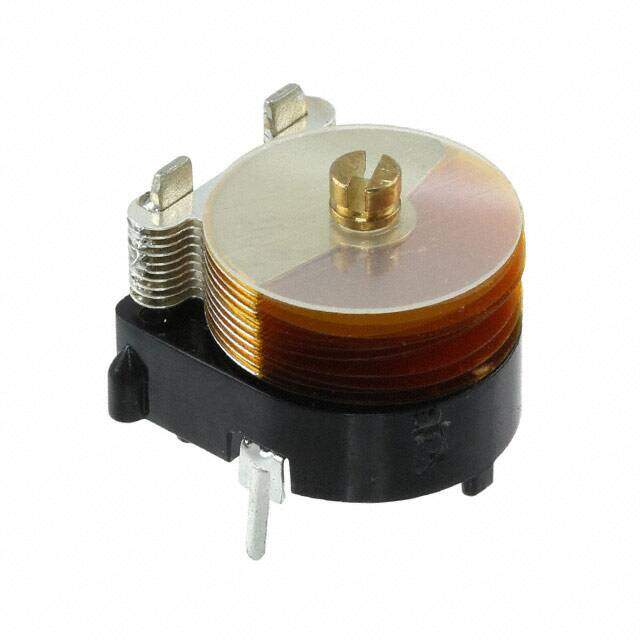

GZN60100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR FILMTRIM? 150V 25pF~600pF 0.709Lx0.610W 18.00mmx15.50mm
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polyimide (PI)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.709Lx0.610W 18.00mmx15.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 150V
HTS Code 8532.30.00.90
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 150V
Size Code 7161
Q @ Freq 150 @ 1MHz
Adjustment Type Top
Capacitance Range 25pF~600pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.669 17.00mm
Length 18mm
Width 15.5mm
Compliance
RoHS Status RoHS Compliant
