GZN20100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

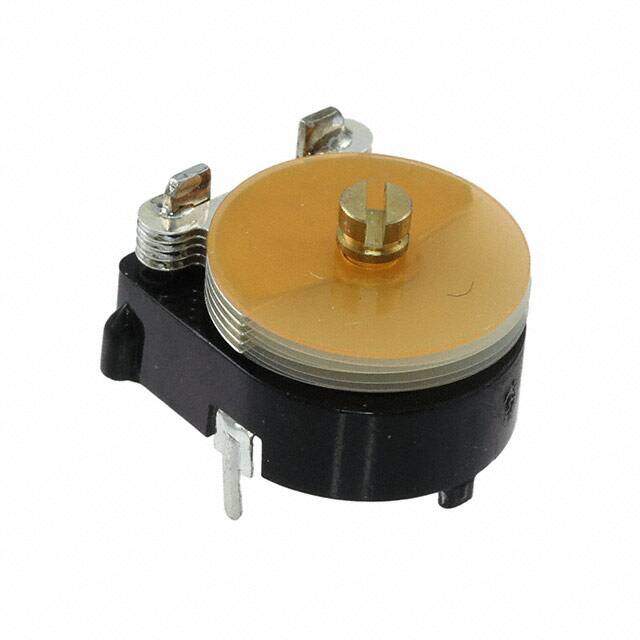

VARIABLE CAPACITOR FILMTRIM? 150V 9pF~200pF 0.709Lx0.610W 18.00mmx15.50mm
PDF
/
Buying Options
Total Price: USD $18.16
Unit Price: USD $18.163972
≥1 USD $18.163972
≥200 USD $7.248521
≥500 USD $7.005634
≥1000 USD $6.886161
Inventory: 8711
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polycarbonate (PC)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2001
Series FILMTRIM?
Size / Dimension 0.709Lx0.610W 18.00mmx15.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
ECCN Code EAR99
HTS Code 8532.30.00.90
Voltage - Rated DC 150V
Lead Pitch 5.08mm
Capacitor Type VARIABLE CAPACITOR
Size Code 7161
Q @ Freq 200 @ 1MHz
Adjustment Type Top
Capacitance Range 9pF~200pF
Adjuster Orientation VERTICAL
Dimensions
Height 17.018mm
Height Seated (Max) 0.669 17.00mm
Width 15.5mm
Compliance
RoHS Status RoHS Compliant
