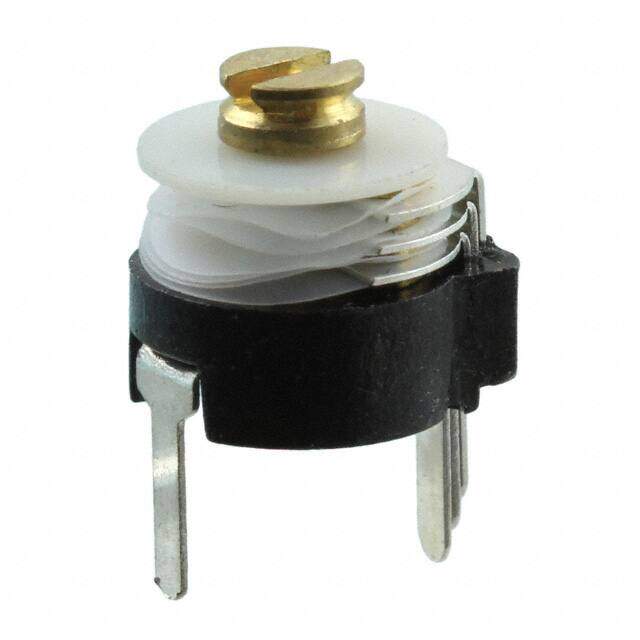

GZL15000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
FILMTRIM? VARIABLE CAPACITOR variable capacitor 0.217Lx0.197W 5.50mmx5.00mm 2pF~15pF 150V
PDF
/
Buying Options
Total Price: USD $9.72
Unit Price: USD $9.719399
≥1 USD $9.719399
≥200 USD $3.878307
≥500 USD $3.74833
≥1000 USD $3.683997
Inventory: 6532
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 5.5mm
Length 6mm
Height Seated (Max) 0.228 5.80mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 2pF~15pF
Adjustment Type Top
Q @ Freq 150 @ 1MHz
Size Code 2422
Rated (DC) Voltage (URdc) 150V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5mm
HTS Code 8532.30.00.90
Voltage - Rated 150V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Series FILMTRIM?
Published 2001
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Polyimide (PI)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
