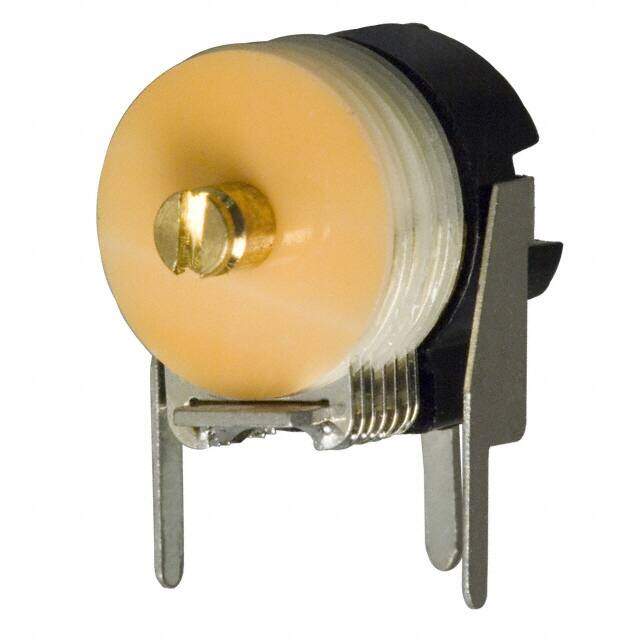

GZD18100 image
Favorite
GZD18100 image
Favorite

GZD18100

Sprague-Goodman
RoHS
RoHS RoHS compliant
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description VARIABLE CAPACITOR FILMTRIM? 100V 12pF 350ppm/C 0.433Dia 11.00mm
PDF
/
Buying Options
Total Price: USD $18.51
Unit Price: USD $18.513203
≥1 USD $18.513203
≥200 USD $7.387688
≥500 USD $7.140863
≥1000 USD $7.018763
Inventory: 1228
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 12mm
Height Seated (Max) 0.472 12.00mm
Height 11.4046mm
Diameter 10.2mm

Technical

Adjuster Orientation HORIZONTAL
Capacitance Range 10pF~180pF
Adjustment Type Side
Q @ Freq 200 @ 1MHz
Size Code 4047
Capacitor Type VARIABLE CAPACITOR
Lead Pitch 9.906mm
Voltage - Rated DC 100V
Capacitance 12pF
HTS Code 8532.30.00.90
Temperature Coefficient 350 ppm/°C
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.433Dia 11.00mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Dielectric Material Polycarbonate (PC)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 14 Weeks
