GZC12100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

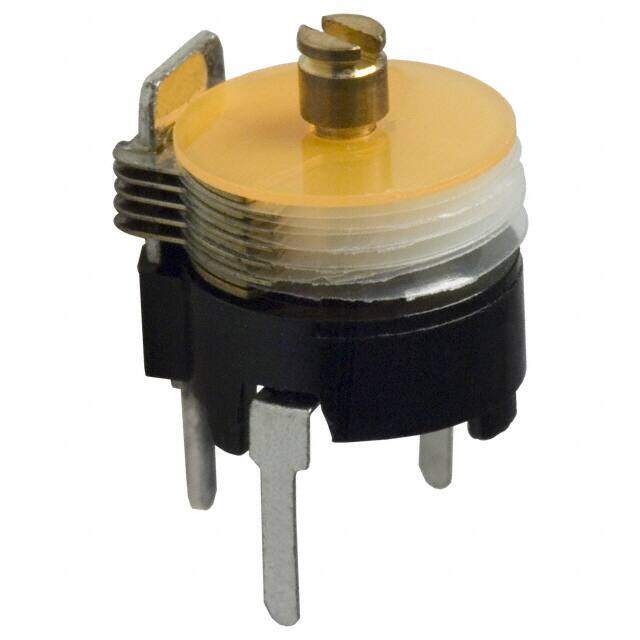

VARIABLE CAPACITOR FILMTRIM? 100V 9pF~120pF 350ppm/C 0.433Dia 11.00mm
PDF
/
Buying Options
Total Price: USD $9.96
Unit Price: USD $9.959659
≥1 USD $9.959659
≥200 USD $3.974148
≥500 USD $3.841545
≥1000 USD $3.7759
Inventory: 2614
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 10.2mm
Length 11mm
Height Seated (Max) 0.449 11.40mm
Height 11.4046mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 9pF~120pF
Adjustment Type Top and Bottom
Q @ Freq 200 @ 1MHz
Size Code 4340
Capacitor Type VARIABLE CAPACITOR
Lead Pitch 9.906mm
Voltage - Rated DC 100V
HTS Code 8532.30.00.90
Temperature Coefficient 350 ppm/°C
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.433Dia 11.00mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Polycarbonate (PC)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
