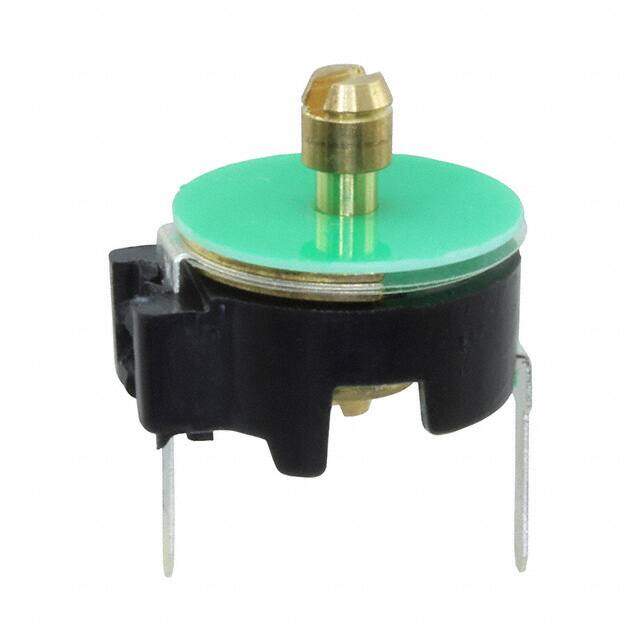

GYC20004
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR FILMTRIM? 100V 3pF~20pF 0.433Lx0.374W 11.00mmx9.50mm
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8544
≥1 USD $3.8544
≥10 USD $3.7664
≥100 USD $3.69424
Inventory: 420
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 30 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polypropylene (PP)
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.433Lx0.374W 11.00mmx9.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 100V
HTS Code 8532.30.00.90
Terminal Pitch 10mm
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 100V
Size Code 4337
Q @ Freq 1000 @ 1MHz
Adjustment Type Top and Bottom
Capacitance Range 3pF~20pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.402 10.20mm
Length 11mm
Width 9.5mm
Compliance
RoHS Status RoHS Compliant
