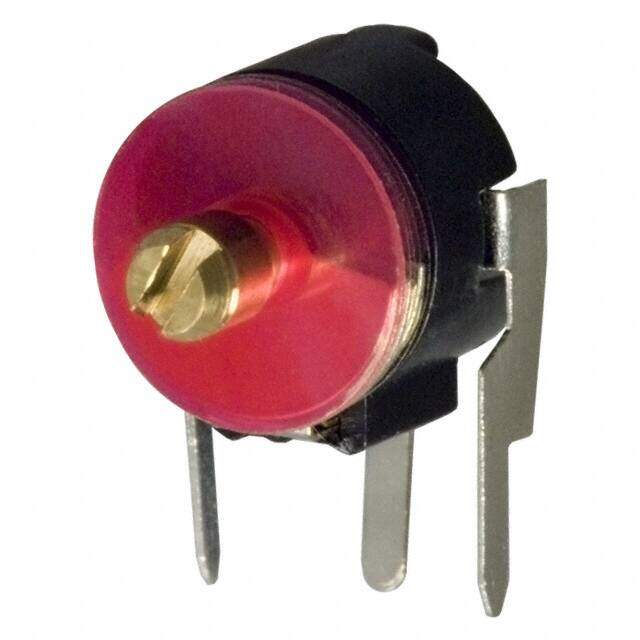

GYB27000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR FILMTRIM? 100V 2.3pF~27pF 350ppm/C 0.335Dia 8.50mm
PDF
/
Buying Options
Total Price: USD $9.16
Unit Price: USD $9.157478
≥1 USD $9.157478
≥200 USD $3.655114
≥500 USD $3.533014
≥1000 USD $3.472621
Inventory: 2460
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polypropylene (PP)
Technical
Operating Temperature -40°C~70°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.335Dia 8.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
ECCN Code EAR99
Temperature Coefficient 350 ppm/°C
HTS Code 8532.30.00.90
Voltage - Rated DC 100V
Lead Pitch 7.62mm
Capacitor Type VARIABLE CAPACITOR
Size Code 3140
Q @ Freq 1000 @ 1MHz
Adjustment Type Side
Capacitance Range 2.3pF~27pF
Adjuster Orientation HORIZONTAL
Dimensions
Height 10.2108mm
Height Seated (Max) 0.402 10.20mm
Length 7.9mm
Width 10.2mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
