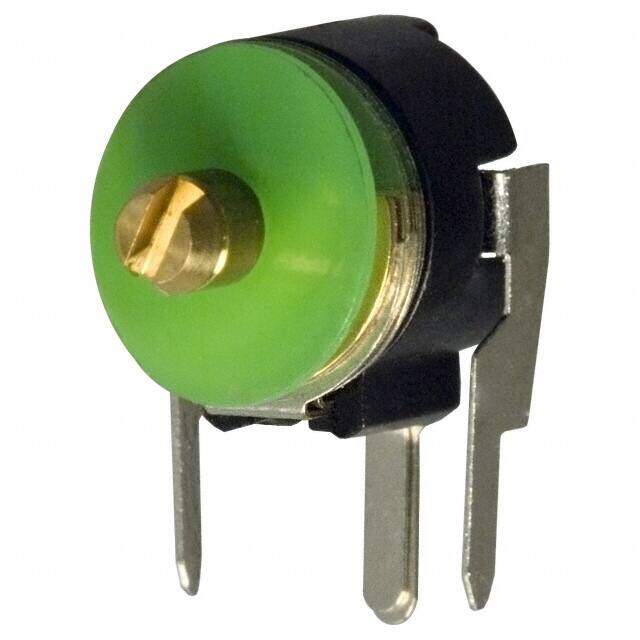

GYB22000 image
Favorite
GYB22000 image
Favorite

GYB22000

Sprague-Goodman
RoHS
RoHS RoHS compliant
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description VARIABLE CAPACITOR FILMTRIM? 100V 2.2pF~22pF 400ppm/C 0.335Dia 8.50mm
PDF
/
Buying Options
Total Price: USD $3.67
Unit Price: USD $3.669556
≥1 USD $3.669556
≥200 USD $1.465196
≥500 USD $1.415306
≥1000 USD $1.391674
Inventory: 7987
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 10.2mm
Length 7.9mm
Height Seated (Max) 0.402 10.20mm
Height 10.2108mm

Technical

Adjuster Orientation HORIZONTAL
Capacitance Range 2.2pF~22pF
Adjustment Type Side
Q @ Freq 1000 @ 1MHz
Size Code 3140
Capacitor Type VARIABLE CAPACITOR
Lead Pitch 7.62mm
Voltage - Rated DC 100V
HTS Code 8532.30.00.90
Temperature Coefficient 400 ppm/°C
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.335Dia 8.50mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~70°C

Physical

Dielectric Material Polypropylene (PP)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
