GYA15000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

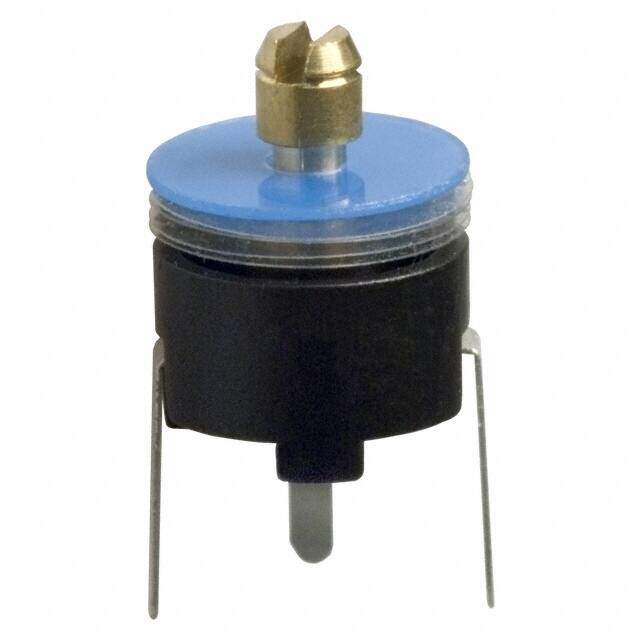

VARIABLE CAPACITOR FILMTRIM? 100V 2pF~15pF 400ppm/C 0.335Dia 8.50mm
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7.7mm
Length 8.5mm
Height Seated (Max) 0.402 10.20mm
Height 10.2108mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 2pF~15pF
Adjustment Type Top and Bottom
Q @ Freq 1000 @ 1MHz
Size Code 3330
Capacitor Type VARIABLE CAPACITOR
Lead Pitch 7.62mm
Voltage - Rated DC 100V
HTS Code 8532.30.00.90
Temperature Coefficient 400 ppm/°C
ECCN Code EAR99
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.335Dia 8.50mm
Series FILMTRIM?
Published 2001
Packaging Bulk
Operating Temperature -40°C~70°C
Physical
Dielectric Material Polypropylene (PP)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
