GXL4R000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

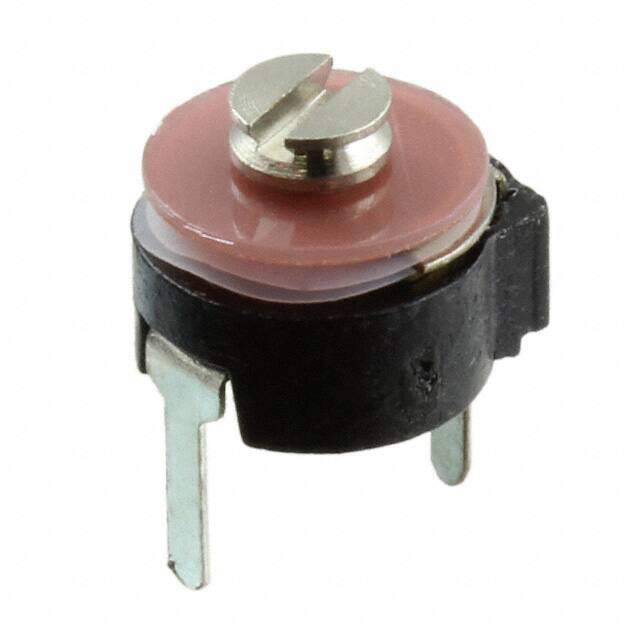

1.2 ~ 4pF Trimmer Capacitor 150V Top Adjustment Through Hole 0.217" L x 0.197" W (5.50mm x 5.00mm)
PDF
/
Buying Options
Total Price: USD $3.61
Unit Price: USD $3.608
≥1 USD $3.608
≥10 USD $3.5244
≥100 USD $3.456288
≥500 USD $3.355
Inventory: 4194
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 5.5mm
Length 6mm
Height Seated (Max) 0.197 5.00mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 1.2pF~4pF
Adjustment Type Top
Q @ Freq 1500 @ 1MHz
Size Code 2422
Rated (DC) Voltage (URdc) 150V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5mm
HTS Code 8532.30.00.90
Voltage - Rated 150V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
