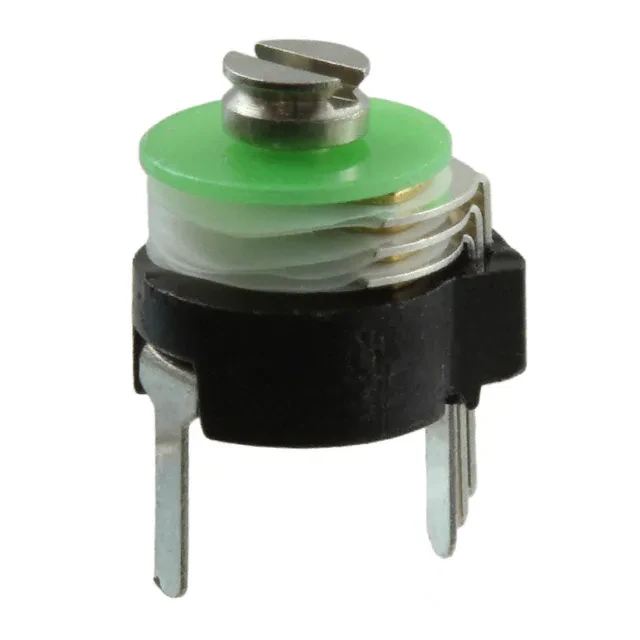

GXL18000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
VARIABLE CAPACITOR FILMTRIM? 150V 2.3pF~18pF 0.217Lx0.197W 5.50mmx5.00mm
PDF
/
Buying Options
Total Price: USD $4.48
Unit Price: USD $4.4792
≥1 USD $4.4792
≥10 USD $4.37888
≥100 USD $4.294928
≥500 USD $4.169
Inventory: 800
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 5.5mm
Length 6mm
Height Seated (Max) 0.236 6.00mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 2.3pF~18pF
Adjustment Type Top
Q @ Freq 1500 @ 1MHz
Size Code 2422
Rated (DC) Voltage (URdc) 150V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5mm
HTS Code 8532.30.00.90
Voltage - Rated 150V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
