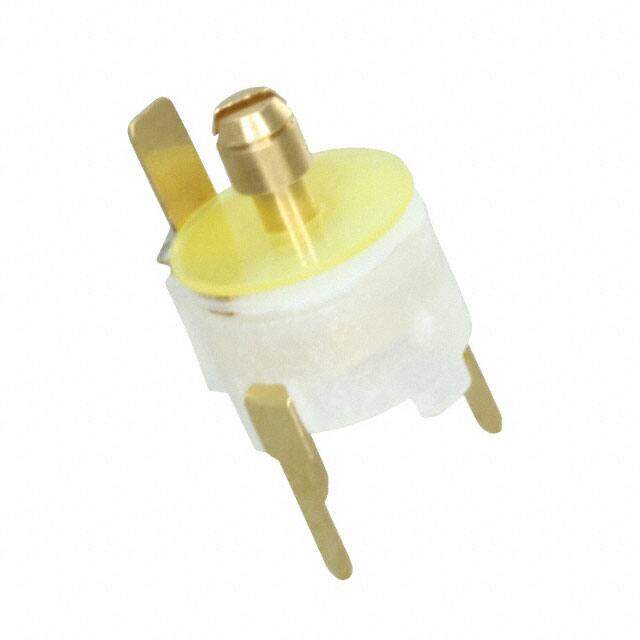

GXE9R002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
FILMTRIM? VARIABLE CAPACITOR variable capacitor 0.335Lx0.295W 8.50mmx7.50mm 1.8pF~9pF 200V
PDF
/
Buying Options
Total Price: USD $10.43
Unit Price: USD $10.433616
≥1 USD $10.433616
≥200 USD $4.163206
≥500 USD $4.024039
≥1000 USD $3.955768
Inventory: 9741
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Length 8.5mm
Height Seated (Max) 0.402 10.20mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 1.8pF~9pF
Adjustment Type Top and Bottom
Q @ Freq 1500 @ 1MHz
Size Code 3330
Rated (DC) Voltage (URdc) 200V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5.08mm
HTS Code 8532.30.00.90
Voltage - Rated 200V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
