GXE5R000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

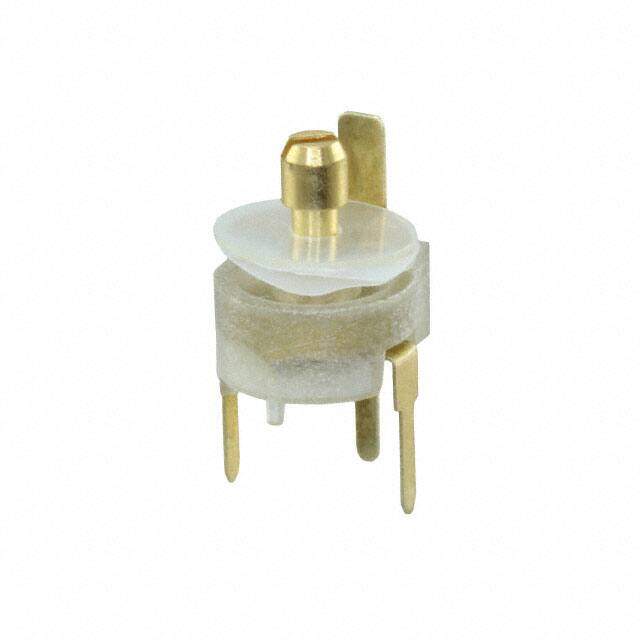

FILMTRIM? VARIABLE CAPACITOR Trimmer Capacitor 0.335Lx0.295W 8.50mmx7.50mm 1.5pF~5pF 200V
PDF
/
Buying Options
Total Price: USD $11.93
Unit Price: USD $11.925071
≥1 USD $11.925071
≥200 USD $4.75795
≥500 USD $4.599089
≥1000 USD $4.520315
Inventory: 4598
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polytetrafluoroethylene (PTFE)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 200V
HTS Code 8532.30.00.90
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 200V
Size Code 3330
Q @ Freq 1500 @ 1MHz
Adjustment Type Top and Bottom
Capacitance Range 1.5pF~5pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.402 10.20mm
Length 8.5mm
Width 7.7mm
Compliance
RoHS Status RoHS Compliant
