GXD60000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

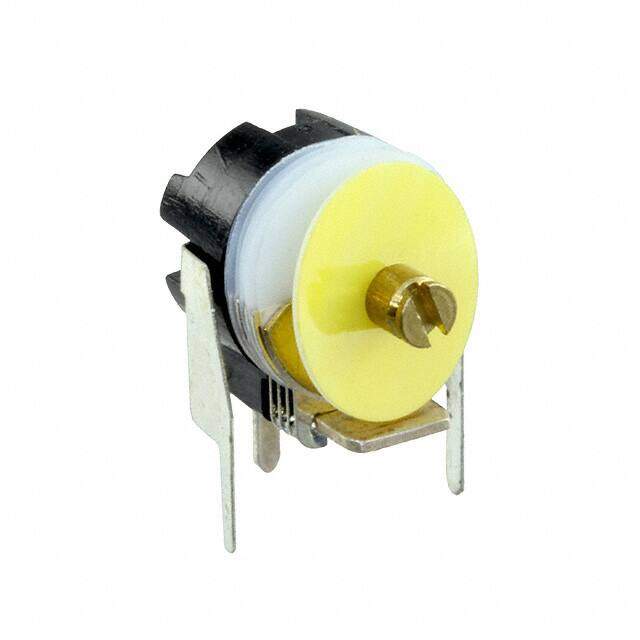

VARIABLE CAPACITOR FILMTRIM? 100V 6pF~60pF 0.449Lx0.402W 11.40mmx10.20mm
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.329014
≥1 USD $11.329014
≥200 USD $4.520315
≥500 USD $4.369331
≥1000 USD $4.294496
Inventory: 2095
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 11.4mm
Length 10.2mm
Height Seated (Max) 0.433 11.00mm
Technical
Adjuster Orientation HORIZONTAL
Capacitance Range 6pF~60pF
Adjustment Type Side
Q @ Freq 1500 @ 1MHz
Size Code 4045
Rated (DC) Voltage (URdc) 100V
Capacitor Type VARIABLE CAPACITOR
HTS Code 8532.30.00.90
Voltage - Rated 100V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.449Lx0.402W 11.40mmx10.20mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
