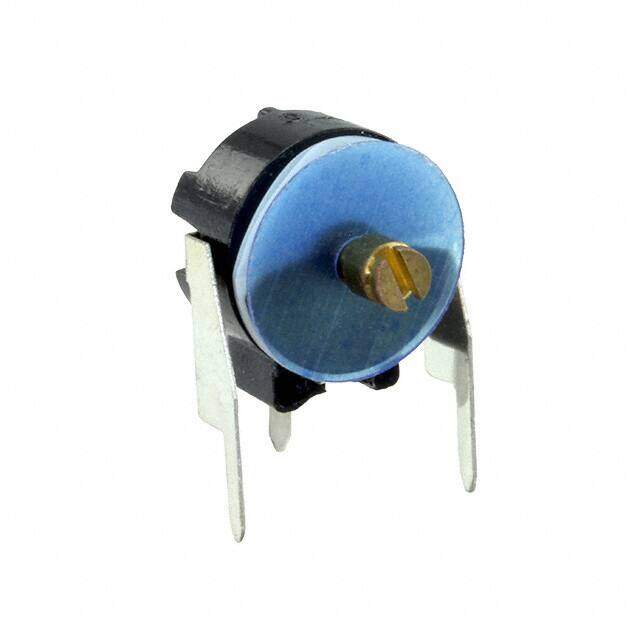

GXD13000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 2-13PF 100V THRU HOLE
PDF
/
Buying Options
Total Price: USD $3.71
Unit Price: USD $3.7136
≥1 USD $3.7136
≥10 USD $3.62824
≥100 USD $3.558368
≥500 USD $3.454
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 10.2mm
Length 10.2mm
Height Seated (Max) 0.433 11.00mm
Technical
Adjuster Orientation HORIZONTAL
Capacitance Range 2pF~13pF
Adjustment Type Side
Q @ Freq 1500 @ 1MHz
Size Code 4040
Rated (DC) Voltage (URdc) 100V
Capacitor Type VARIABLE CAPACITOR
HTS Code 8532.30.00.90
Voltage - Rated 100V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.402Lx0.402W 10.20mmx10.20mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
