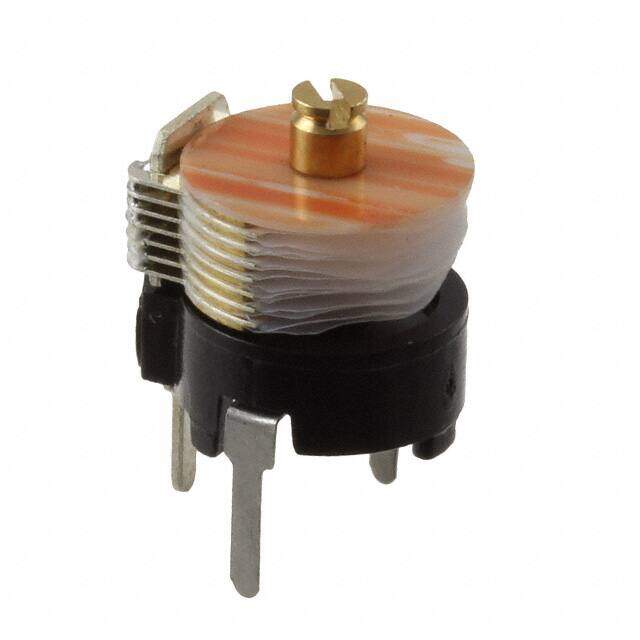

GXC15100
RoHS
/
Package /
Category Capacitors / Trimmers, Variable Capacitors
Description
FILMTRIM? VARIABLE CAPACITOR variable capacitor 0.433Lx0.374W 11.00mmx9.50mm 10pF~150pF 100V
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.951399
≥1 USD $2.951399
≥200 USD $1.177671
≥500 USD $1.138284
≥1000 USD $1.119904
Inventory: 7609
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Terminal Shape FLAT
Dielectric Material Polytetrafluoroethylene (PTFE)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2002
Series FILMTRIM?
Size / Dimension 0.433Lx0.374W 11.00mmx9.50mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 100V
HTS Code 8532.30.00.90
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 100V
Size Code 4340
Q @ Freq 1500 @ 1MHz
Adjustment Type Top and Bottom
Capacitance Range 10pF~150pF
Adjuster Orientation VERTICAL
Dimensions
Height Seated (Max) 0.402 10.20mm
Length 11mm
Width 10.2mm
Compliance
RoHS Status RoHS Compliant
