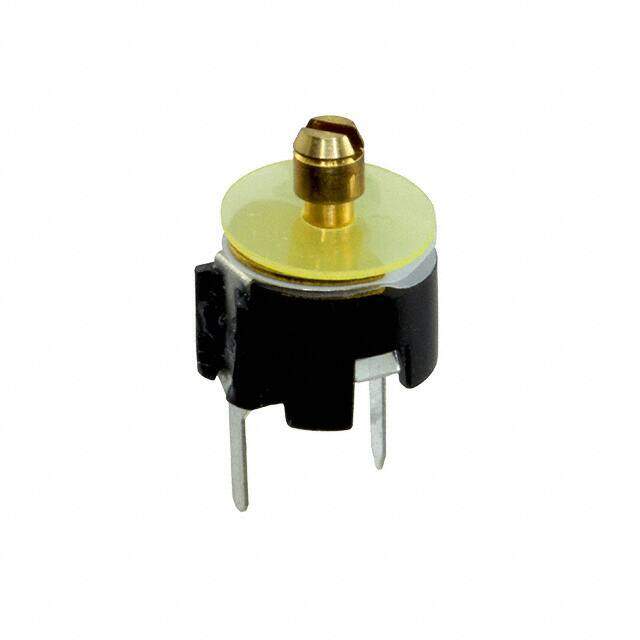

GXA9R002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description
CAP TRIM 2-9PF 100V THRU HOLE
PDF
/
Inventory: 8609
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 7.5mm
Length 8.5mm
Height Seated (Max) 0.402 10.20mm
Technical
Adjuster Orientation VERTICAL
Capacitance Range 2pF~9pF
Adjustment Type Top and Bottom
Q @ Freq 1500 @ 1MHz
Size Code 3330
Rated (DC) Voltage (URdc) 100V
Capacitor Type VARIABLE CAPACITOR
Terminal Pitch 5.08mm
HTS Code 8532.30.00.90
Voltage - Rated 100V
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature General Purpose
Size / Dimension 0.335Lx0.295W 8.50mmx7.50mm
Series FILMTRIM?
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material Polytetrafluoroethylene (PTFE)
Terminal Shape FLAT
Mounting Type Through Hole
Mount Through Hole
