GSG904
RoHS
RoHS compliant
RoHS compliantPackage /
Category Capacitors / Trimmers, Variable Capacitors
Description

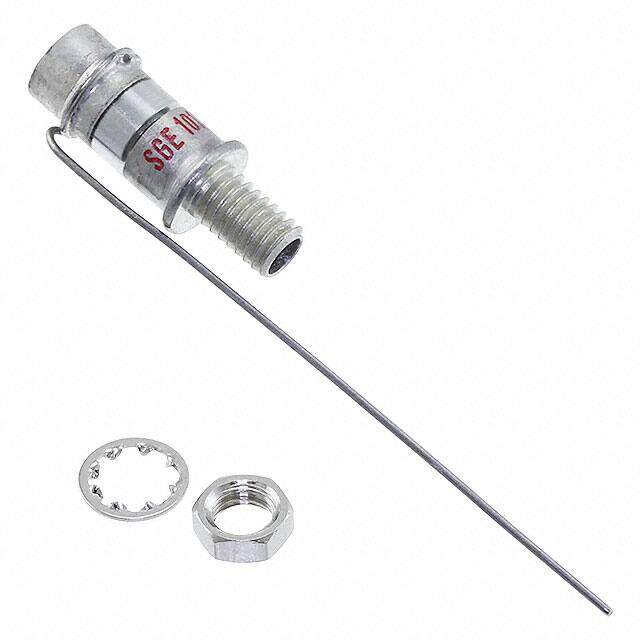

CAP TRIM 0.7-9PF 750V PNL MOUNT
PDF
/
Buying Options
Total Price: USD $37.64
Unit Price: USD $37.6376
≥1 USD $37.6376
≥10 USD $36.88784
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type User Defined
Surface Mount NO
Terminal Shape WIRE
Mounting Feature PANEL MOUNT
Dielectric Material Glass
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2013
Series PISTONCAP?
Size / Dimension 0.375Dia 9.52mm
Feature General Purpose
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 750V
HTS Code 8532.30.00.10
Capacitor Type VARIABLE CAPACITOR
Rated (DC) Voltage (URdc) 750V
Q @ Freq 500 @ 20MHz
Capacitance Range 0.7pF~9pF
Multi-turn 1
Dimensions
Height Seated (Max) 0.656 16.66mm
Compliance
RoHS Status RoHS Compliant
